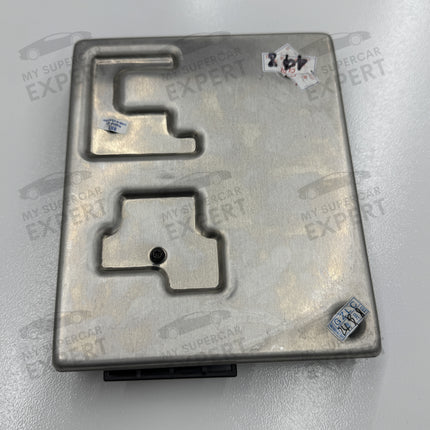

Porsche Cayenne (92A) Panamera (970) Macan (95B) 2010-2018 Rear BCM 7PP907279 Aftermarket
Porsche Cayenne (92A) Panamera (970) Macan (95B) 2010-2018 Rear BCM 7PP907279 Aftermarket
Import fees may apply. Ask our team for more info!
Couldn't load pickup availability
Aftermarket version of the Porsche Cayenne (92A) Panamera (970) Macan (95B) 2010-2018 Rear BCM 7PP907279.
Info
Type: Body Computer
Model: Rear BCM
Manufacturer:
Brand: Porsche
Manufacturer Part Number:
Vehicle Part Number: 7PP907279
Other Part Numbers:
Compatible Part Numbers: 7PP907279AD, 7PP907279T, 7PP907279AH, 7PP9072797AR, 7PP907279BE, 7PP907279AK, 7PP907279CG, 7PP907279AL, 7PP907279M, 7PP907279BT, 7PP907279BP, 7PP907279BG, 7PP907279GF, 7PP907279N
Conditions
Hardware: 100% working, new
Comment: the body computer has passed all functionality tests and it is guaranteed to work.
Note: you can clone it directly.
To connect in JTAG, you do not need to open the board.

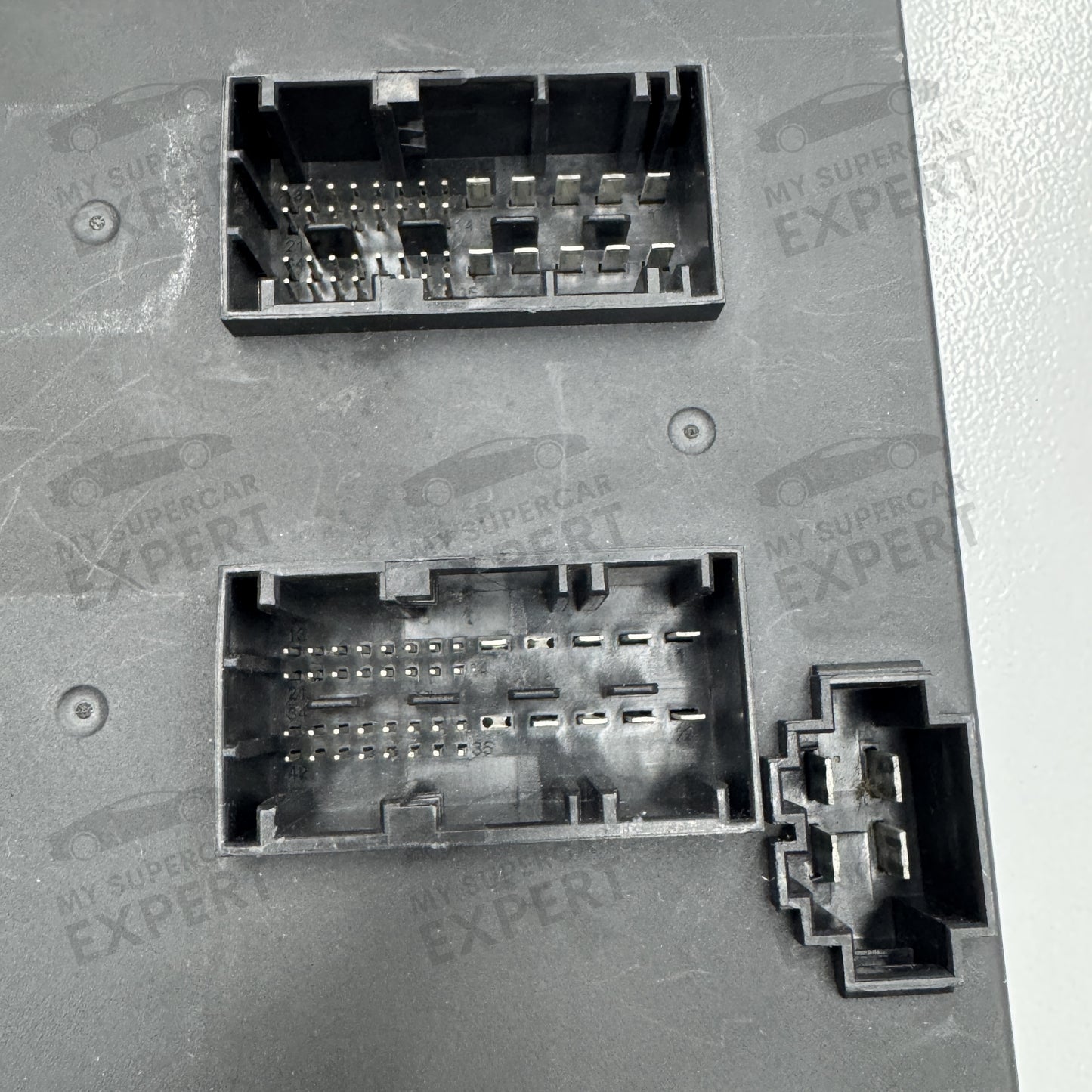

On the fully pinned 42 pin connector (not the central one):
VCC = 19
GND = 40
BKGD = 10
RESET = 11
CPU: MC9S12XET512 (2M25J)
Tip: just write DFLASH, no need to write PFLASH.

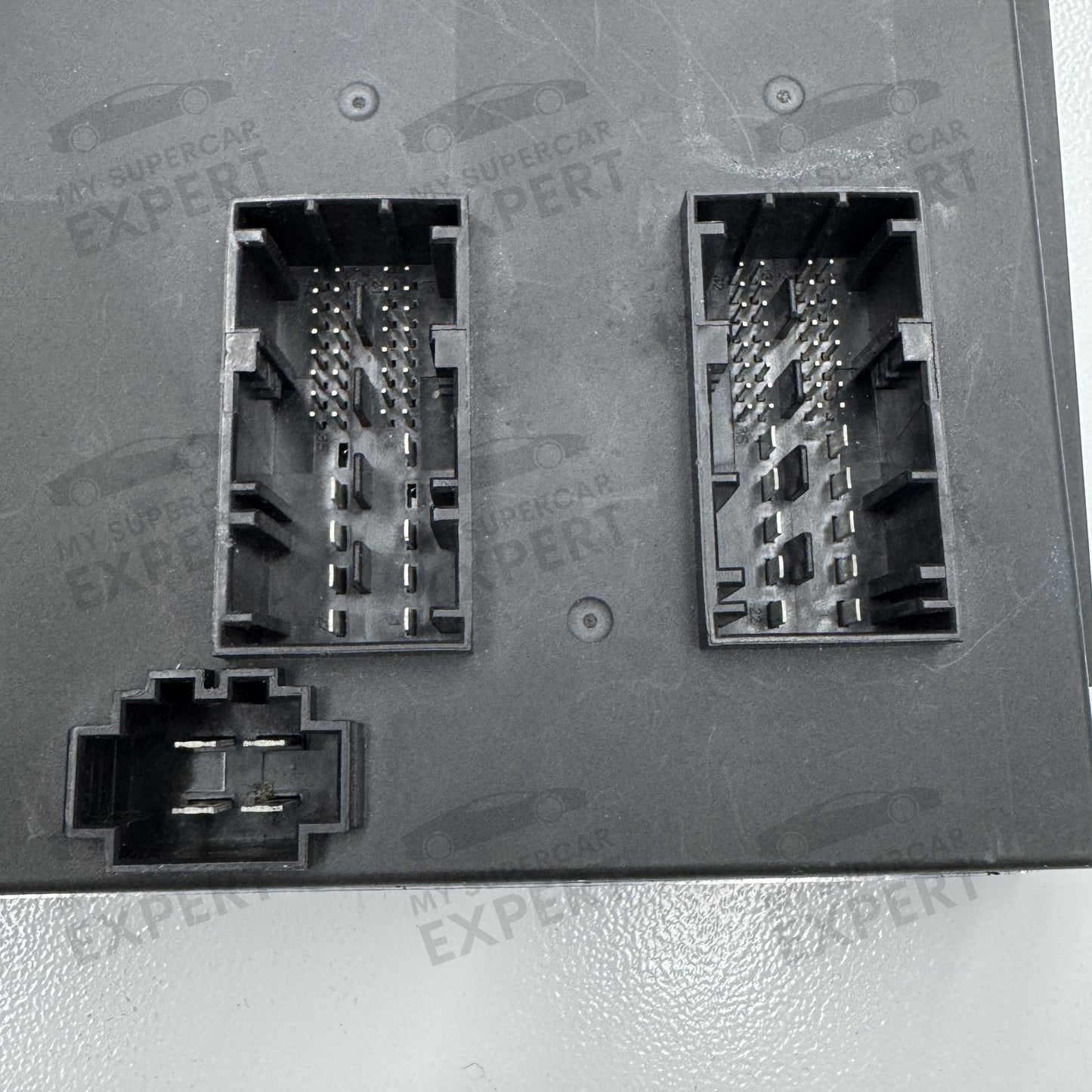

If you cannot communicate with the rear BCM once installed, check the 4 pin connector for power, usually when the fuses are blown these pins do not receive power so the BCM is impossible to communicate with. But after replacing the fuses it will work OK.
