Motorola MPC561 MPC562 MPC563 MPC564 / Freescale MPC5554 CPU Magnetic Stencil for BGA Reballing for EDC16 MED9 and other ECUs

Description

This BGA stencil kit can be used to reball CPUs of the following series:
Freescale MPC5554 and Motorola MPC561 MPC562 MPC563 MPC564
These two groups are divided by the common adjustment plate, while the bottom base and the actual stencil are the same for all.

These chips are commonly used on MED9, EDC16, Delphi CRD2.xx (some have TC17xx!) and other ECU series.

The package includes:

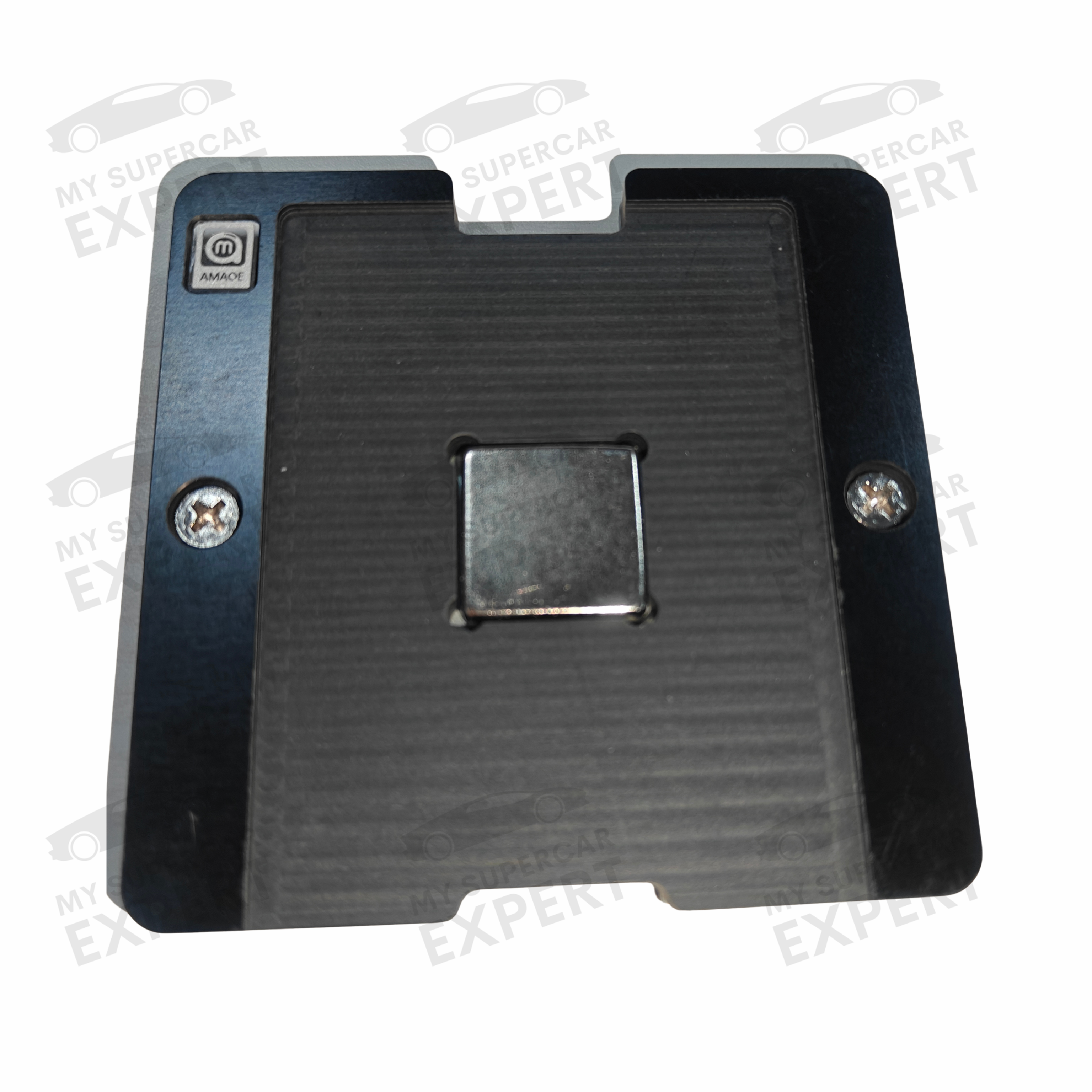

- Magnetic base

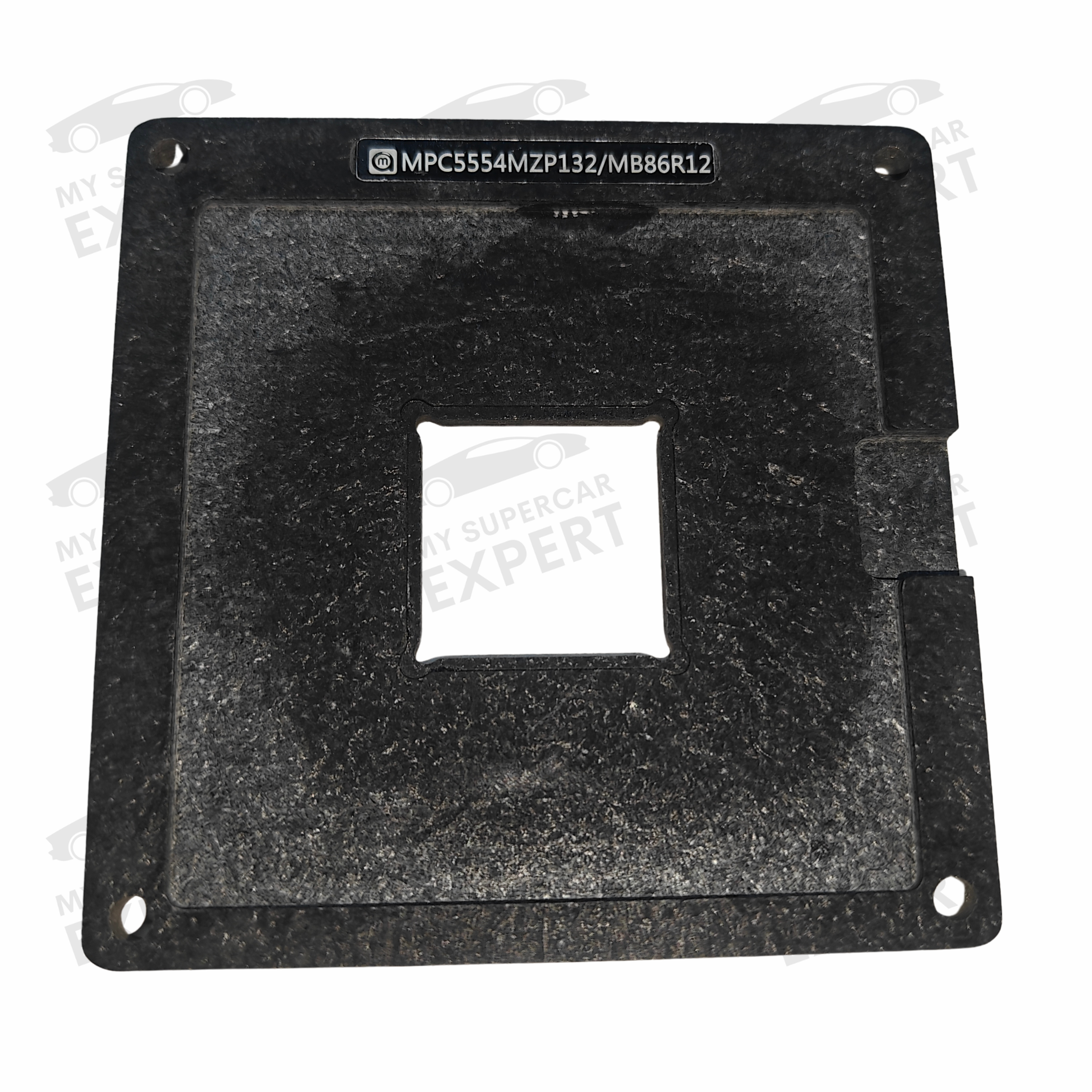

- Adjustment Plate

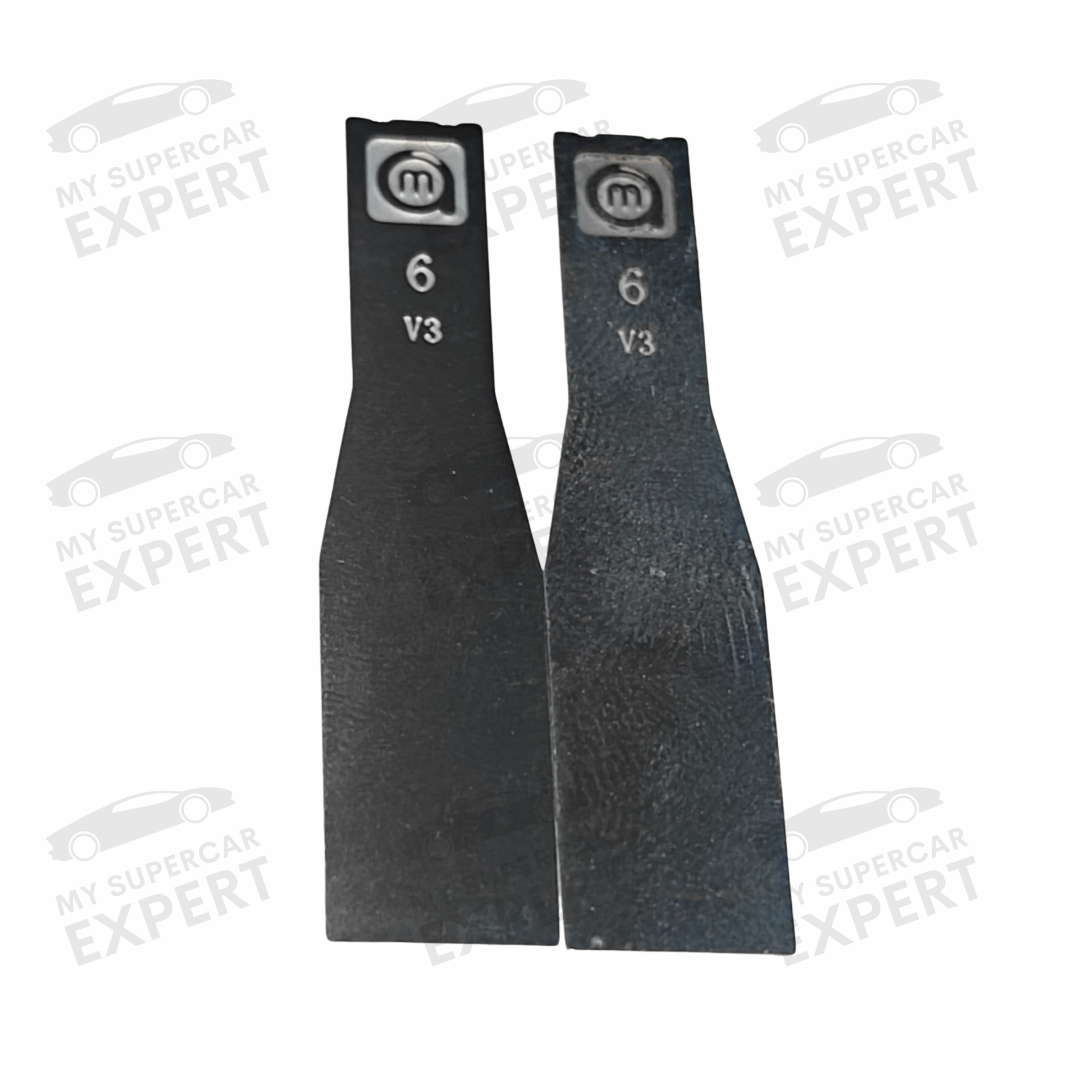

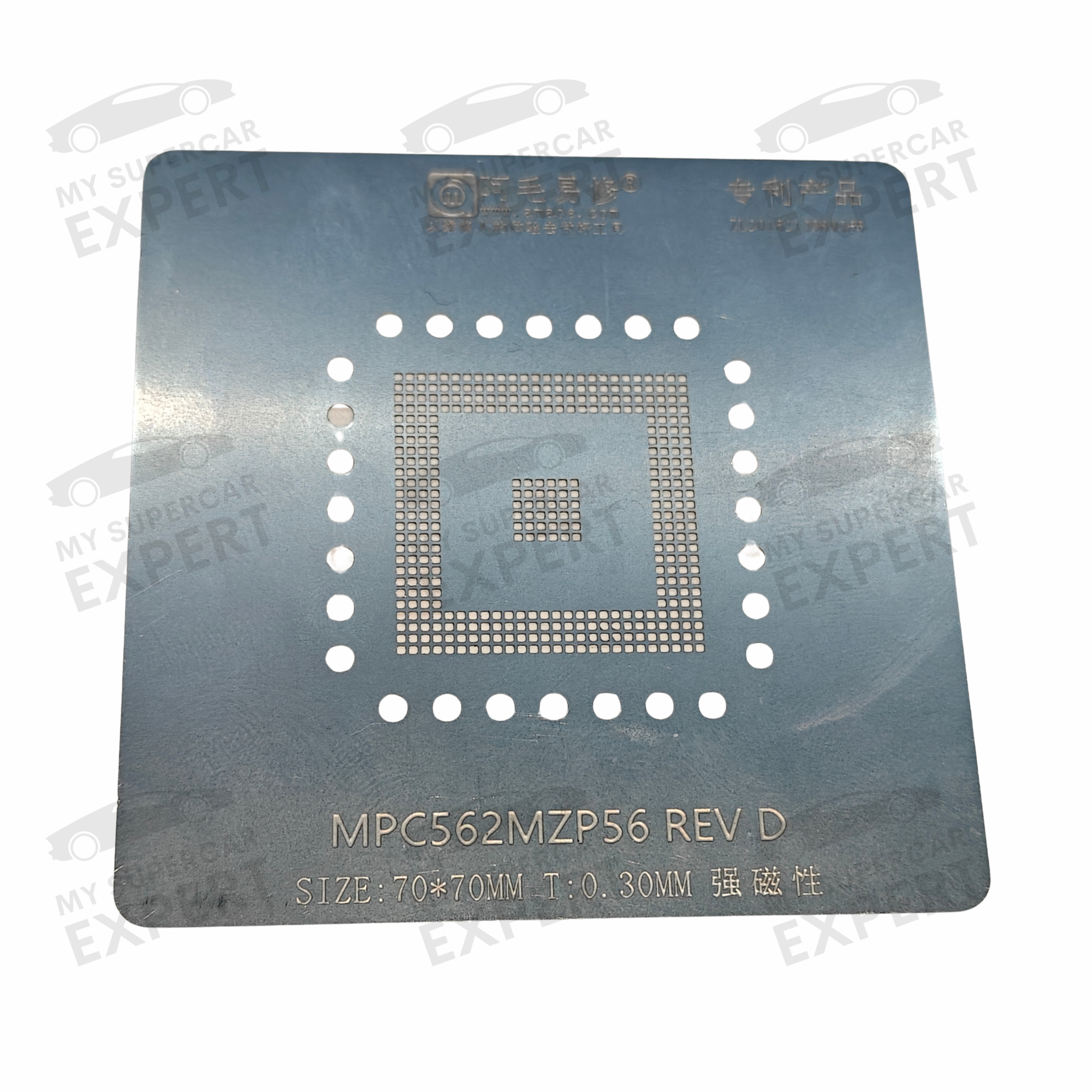

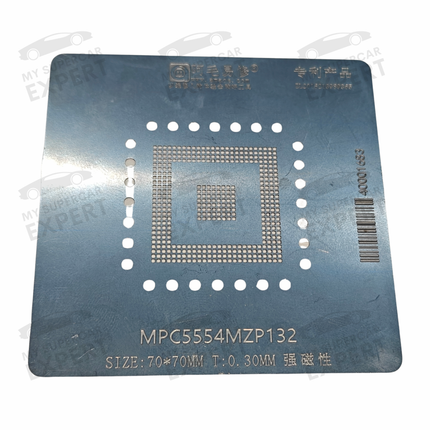

- Stencil * 2

Instructions for use:
1. Remove all tin from the CPU
2. Set the CPU on the base and add the stencil on top
3. Use soldering paste and make sure it is evenly distributed all around the stencil holes, removing any extras.
4. Using a heating gun, warm up the soldering paste until it starts to melt into the CPU pads
5. Let it cool down for several minutes, then remove the stencil and check if there is any missing pad. If not, you can start soldering the CPU on the PCB!

For more tips on the usage process, check our video:
