Land Rover Range Rover Evoque (L551) 2018-2020 MHEV 48V K8D2/L8B2/N8B2 DCDC Repair Kit

Description

This kit allows to fix hardware issues which cause this DCDC to no longer convert 48V battery input into 12V output to charge the 12V battery.
After fix, you can test the DCDC using our platform - if the activated DCDC can charge a battery connected to it while a 48V power supply is connected to the DCDC, then it is functioning properly. Make sure to check for error codes with a diagnostic!

Note this service solves only the hardware problem on the DCDC, if the DCDC has software faults as well, or if you need to repair also battery, these are unrelated for the scope of this product, but we can help with a file.

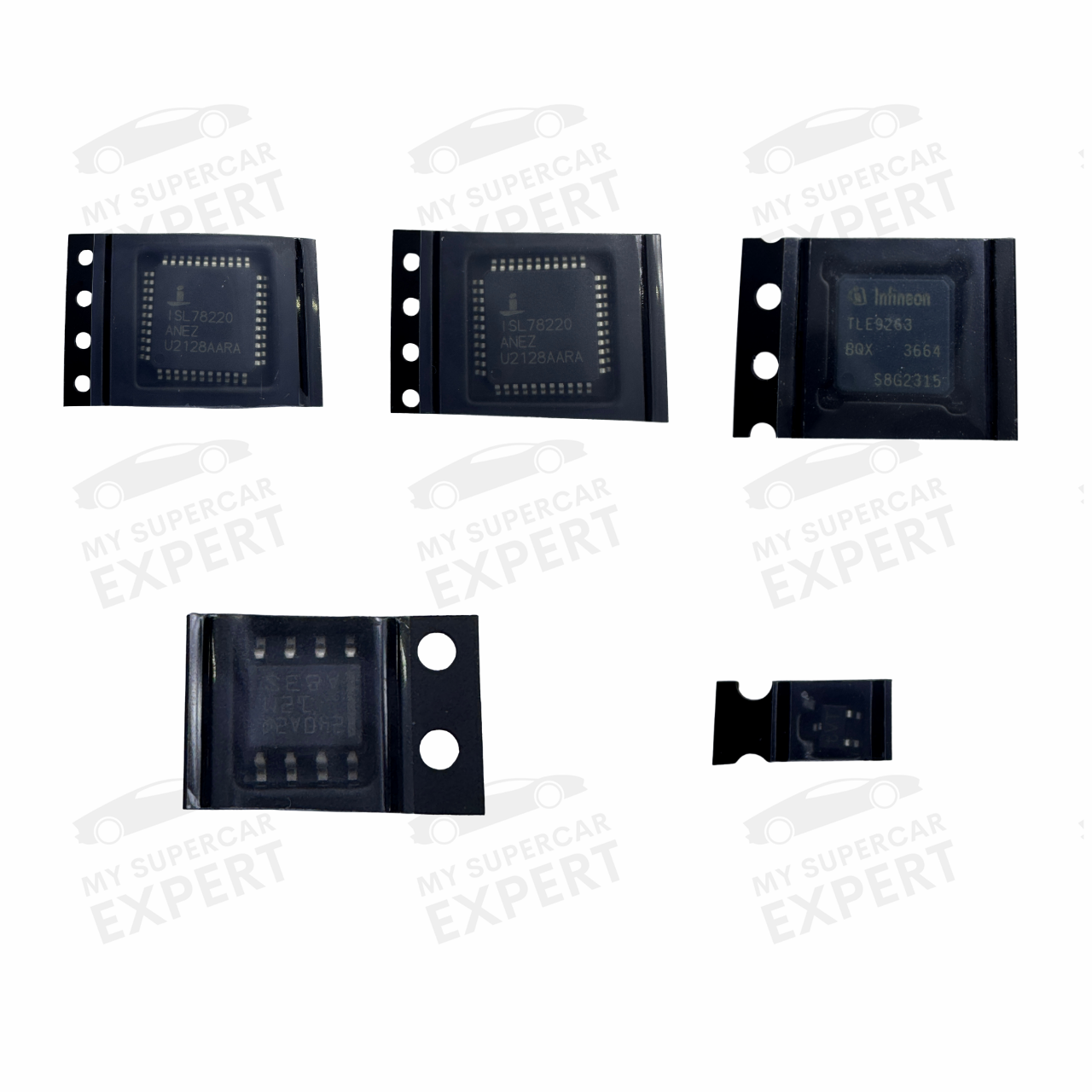

Kit includes chips needed to solve fault P0D33 (short circuit to ground):
2 * ISL78220 ANEZ power supply chip
TVT triode
240A2Q chip
TLE9263BQX

Other hardware faults include:
P0A94 internal fault (damaged MOSFETs)

MOSFETs are not included.

Another possible issue is software fault, in which case no fault codes are present but in live data there will be fault in operating mode.

There are other hardware issues, however at the moment we do not have further information.

More info in the video:


If it is a software problem, issue will instead look like as below:

Supported part numbers:

K8B2-14B227-xx: K8B2-14B227-AL, K8D2-14B227-AM, K8D2-14D457-AE, K8D2-14D459-AM, K8D2-14D458-AA, K8D2-14D457-AE
L8B2-14B227-xx
N8B2-14B227-AB

Not supported part numbers:
N8B2-14B227-AC and later versions

Product form

Next day shipping

$35.00

Import fees may apply. Ask our team for more info!

  • Shipped today? Order within: Apr 11, 2026 14:00:00 +0800

    • Guaranteed secure & safe checkout.

      paypal
      Before you order...

    Check on the "Conditions" paragraph right above if any device is needed for coding or programming this product.

    On your purchase, you will receive detailed instructions on how to install your new part.

    Remember you can always contact us in advance for any info!

      100% Tested

    The product has been tested before shipping.

    ShippingShipping

    We ship by DHL, FEDEX and UPS worldwide: for these couriers, delivery times are usually as it follows:
    Europe -> 5-7 days
    ASEAN and East Asia -> 1-3 days
    GCC and Oceania -> 3-6 days
    Rest of Asia -> 4-7 days
    Rest of the world -> 7-10 days

    For USA market please check here.

    Description

    This kit allows to fix hardware issues which cause this DCDC to no longer convert 48V battery input into 12V output to charge the 12V battery.
    After fix, you can test the DCDC using our platform - if the activated DCDC can charge a battery connected to it while a 48V power supply is connected to the DCDC, then it is functioning properly. Make sure to check for error codes with a diagnostic!

    Note this service solves only the hardware problem on the DCDC, if the DCDC has software faults as well, or if you need to repair also battery, these are unrelated for the scope of this product, but we can help with a file.

    Kit includes chips needed to solve fault P0D33 (short circuit to ground):
    2 * ISL78220 ANEZ power supply chip
    TVT triode
    240A2Q chip
    TLE9263BQX

    Other hardware faults include:
    P0A94 internal fault (damaged MOSFETs)

    MOSFETs are not included.

    Another possible issue is software fault, in which case no fault codes are present but in live data there will be fault in operating mode.

    There are other hardware issues, however at the moment we do not have further information.

    More info in the video:


    If it is a software problem, issue will instead look like as below:

    Supported part numbers:

    K8B2-14B227-xx: K8B2-14B227-AL, K8D2-14B227-AM, K8D2-14D457-AE, K8D2-14D459-AM, K8D2-14D458-AA, K8D2-14D457-AE
    L8B2-14B227-xx
    N8B2-14B227-AB

    Not supported part numbers:
    N8B2-14B227-AC and later versions
