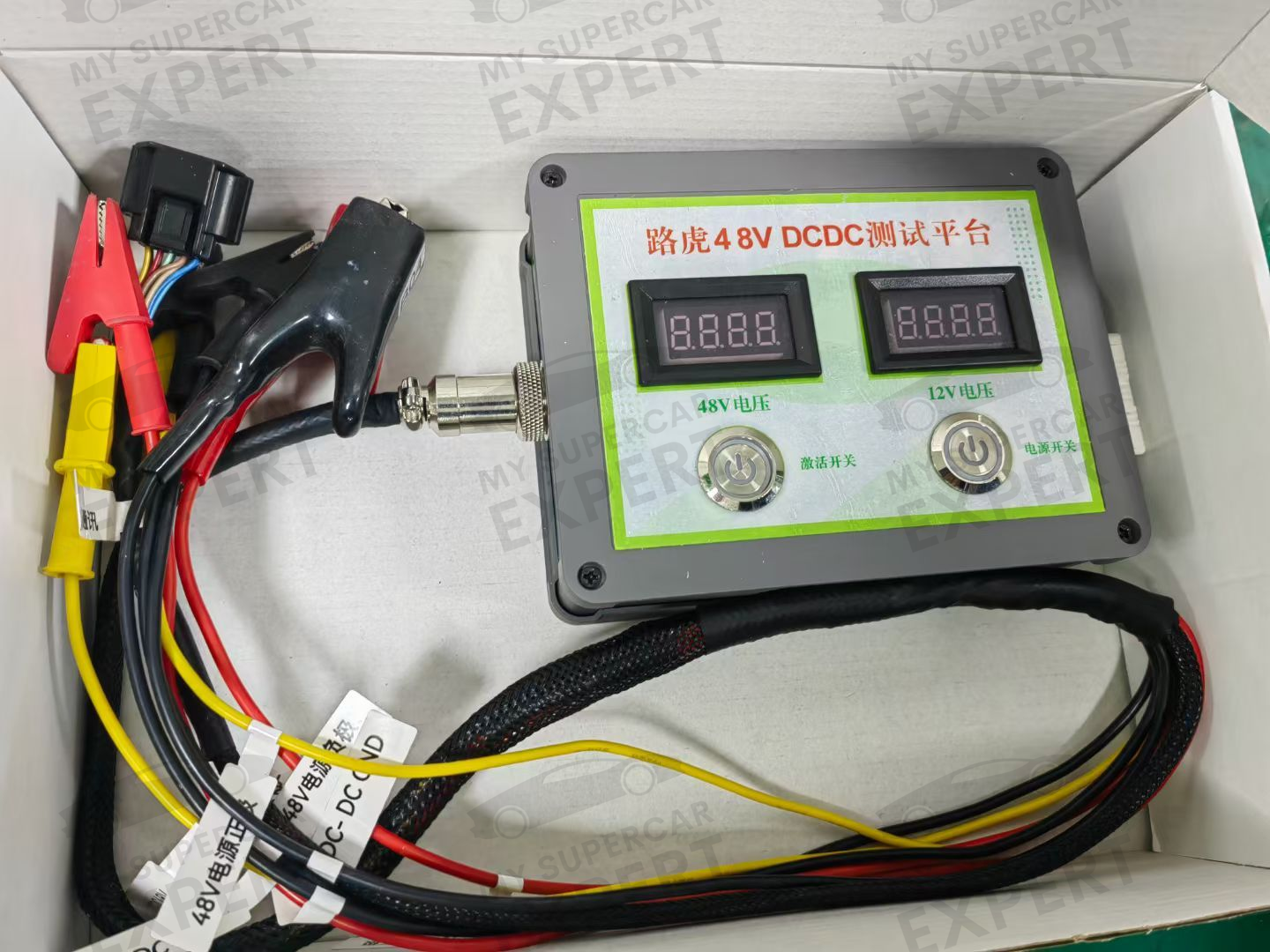

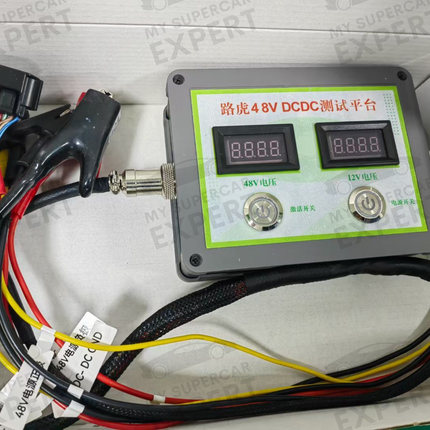

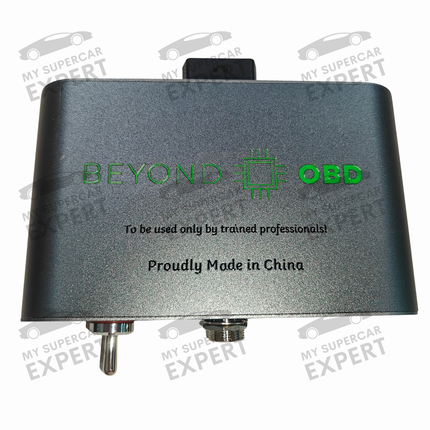

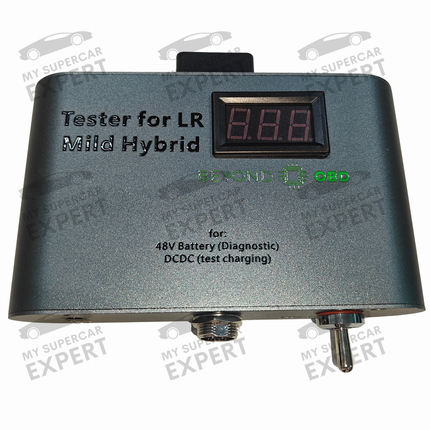

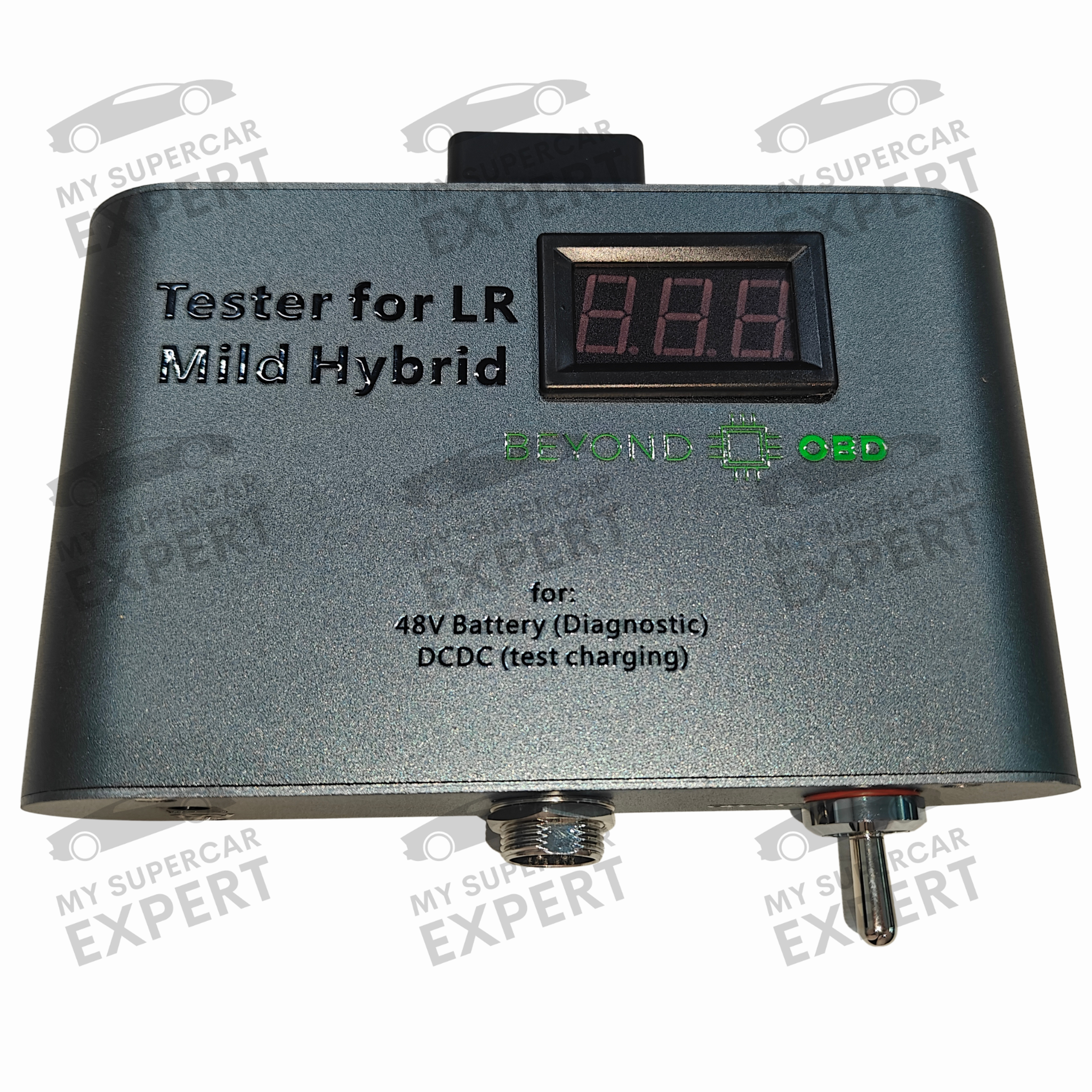

Description Use our test platform to confirm the repaired module, or the used module you plan to install on car, is working!
Among these, we have repair solutions for:
These modules are often having issues, meaning there is a market for repair as much as there is to test used modules before recycling them.
Module
Platform Switch Description
EPICD (Old)
<- CHARGING
Buck mode (Charges 12v battery to 14.6V if 48V are supplied to it)
EPICD (New)
<- CHARGING
Nothing
EPICD (Old)
-> ON
Boost mode* (boosts HV supply to 46.2V if the voltage is lower than that)
EPICD (New)
-> ON
Boost mode* (boosts HV supply to 46.2V if the voltage is lower than that)
BECM
-> ON
Power ON (battery supplies power)
TSCM
-> ON
Power ON (TSCM immediately starts working)
SGCM
-> ON
Power ON (SGCM immediately starts working)

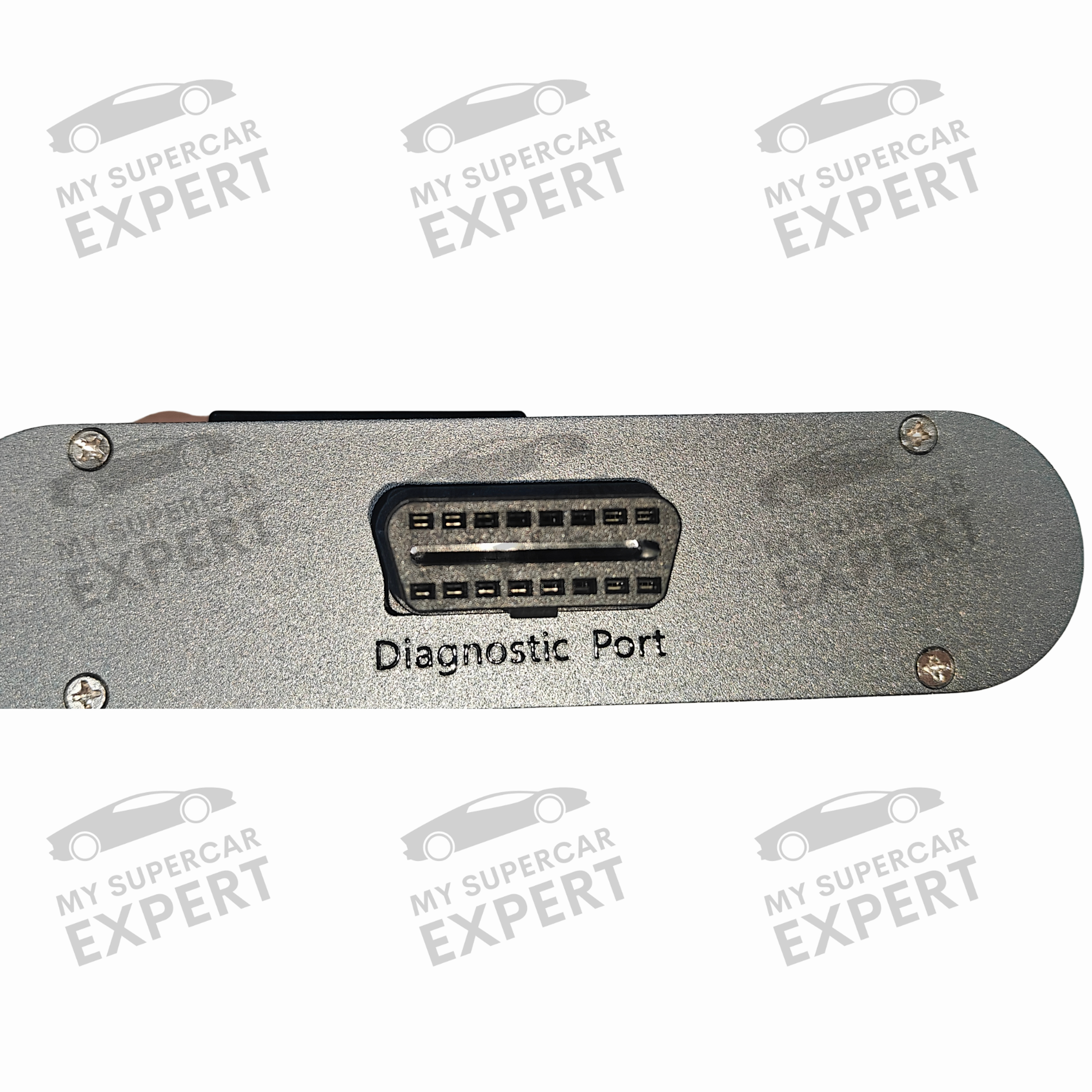

* Attention: if power supply current is low, boost mode won't reach 46.2v and/or 12v supply will be too low to allow a diagnostic tool to work. If you use a big 12V power supply with a lot of Ampere, you can use this method to test TSCM and SGCM without an actual 48V power supply or a battery, but it is not recommended, as it is easier to find a small 48V power supply instead or use the 46.2V battery.

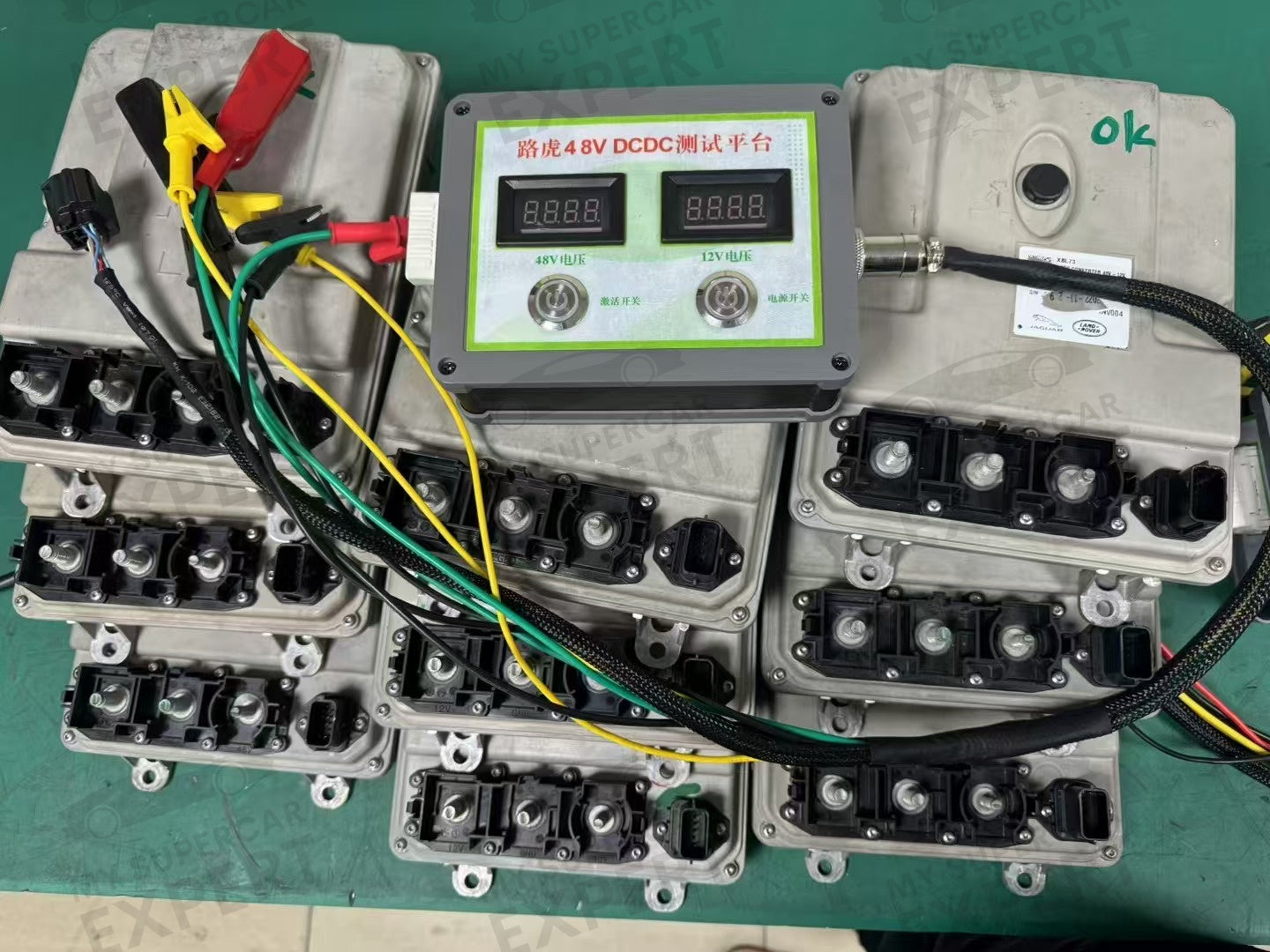

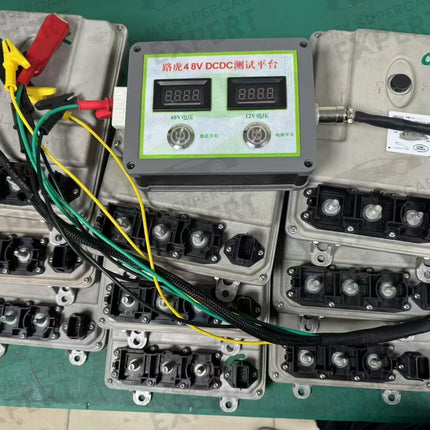

Testing TSCM SGCM and EPICD (new):
VIDEO
Supported vehicles:
Brand Model Type Year
Jaguar
F-Pace D200
(X761)
2020-2022
Jaguar
F-Pace D300
(X761)
2020-2025
Jaguar
XF 25t 250
(X260)
2020-2024
Jaguar
XF 30t 300
(X260)
2020-2024
Jaguar
XF E-Performance 163
(X260)
2020-2024
Jaguar
XF 20d 180
(X260)
2020-2024
Jaguar
XF 25d 240
(X260)
2020-2024
Jaguar
XE 20d 163 E-Performance
(X760)
2020-2024
Jaguar
XE 20d 163
(X760)
2020-2024
Jaguar
XE D180
(X760)
2020-2024
Jaguar
XE 25d
(X760)
2020-2024
Jaguar
XE P250
(X760)
2020-2024
Jaguar
XE P300
(X760)
2020-2024
Land Rover
Defender 90 P400 MHEV
(L663)
2019-2026
Land Rover
Defender 110 P400 MHEV
(L663)
2019-2026
Land Rover
Range Rover Velar P400
(L560)
2020-2026
Land Rover
Range Rover Velar D200
(L560)
2020-2026
Land Rover
Range Rover Evoque D150
(L551)
2018-2026
Land Rover
Range Rover Evoque D180
(L551)
2018-2026
Land Rover
Range Rover Evoque D240
(L551)
2018-2026
Land Rover
Range Rover Evoque P200
(L551)
2018-2026
Land Rover
Range Rover Evoque P250
(L551)
2018-2026
Land Rover
Range Rover Evoque P300
(L551)
2018-2026
Land Rover
Discovery MHEV
(L462)
2017-2026
Land Rover
Range Rover Sport MHEV
(L494)
2018-2022
Land Rover
Range Rover Sport P360
(L461)
2022-2026
Land Rover
Range Rover Sport P400
(L461)
2022-2026
Land Rover
Range Rover Sport D250
(L461)
2022-2026
Land Rover
Range Rover Sport D300
(L461)
2022-2026
Land Rover
Range Rover Sport D350
(L461)
2022-2026

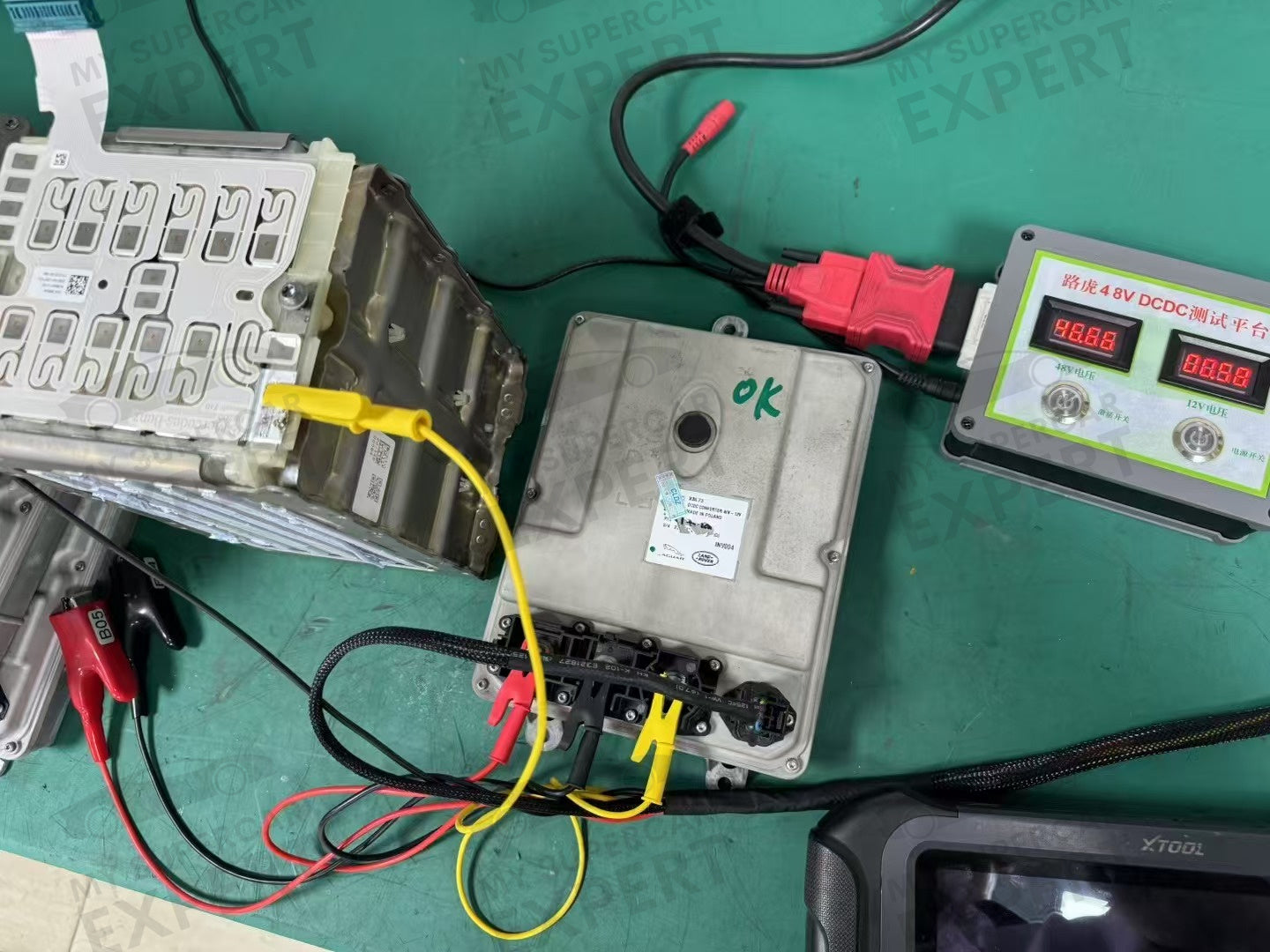

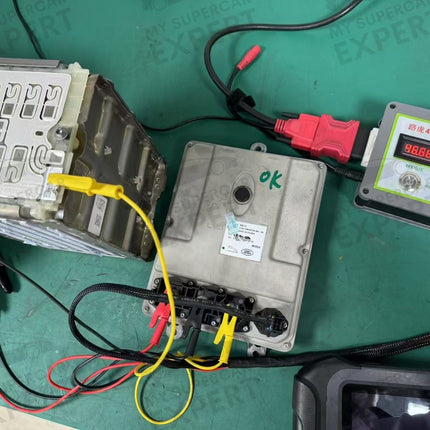

If the DCDC is working, you will see 48V battery losing power and 12V battery getting charge.

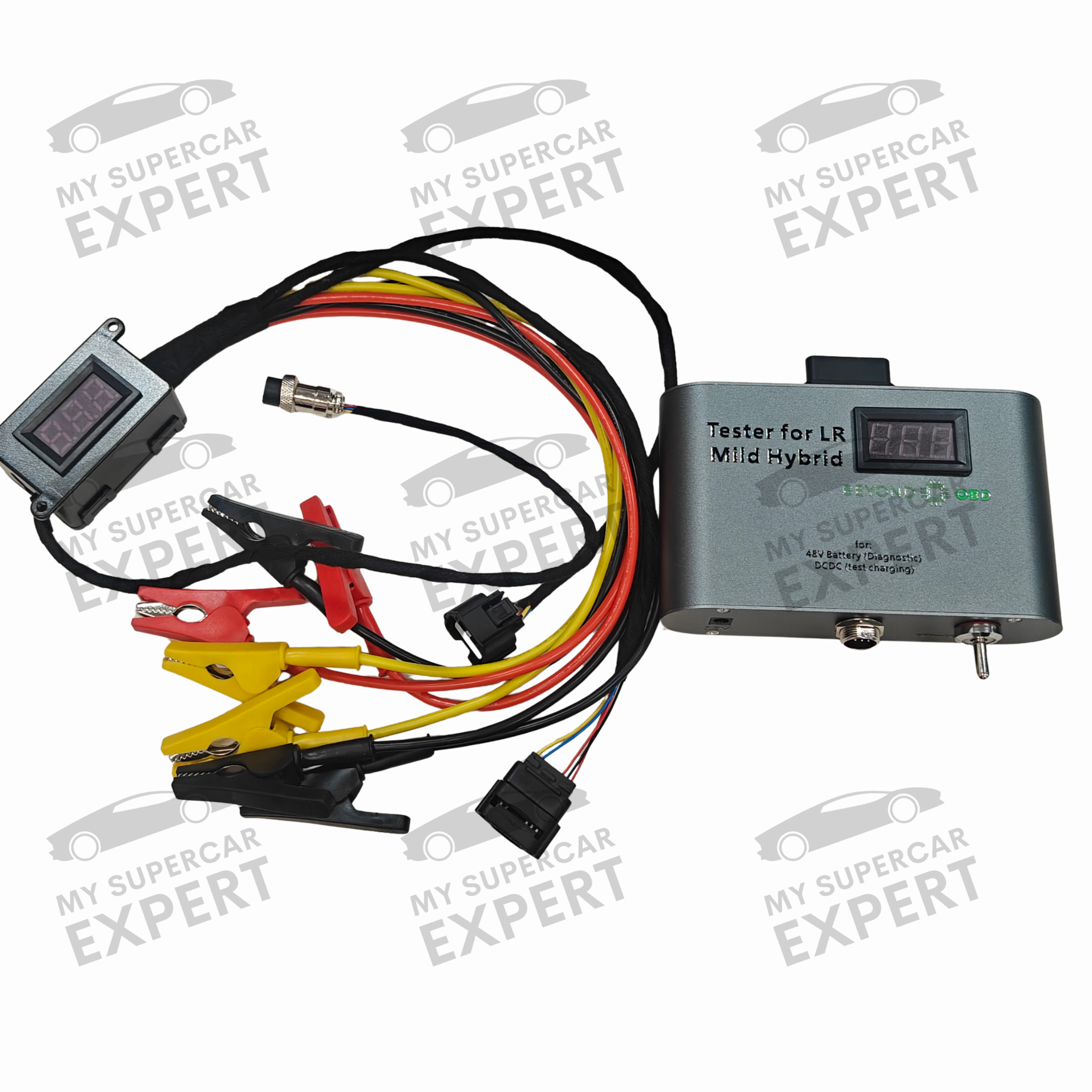

Note: owners of the Beyond OBD JLR DCDC Platform (older version of this one) will have a special discount, and can get a new platform in addition to the older one for just 150 USD!
