RT809H is the programmer we choose for working on memories popular automotive programmers do not support, especially EMMCs.
It is affordable and at the same time not too difficult to use. However, you need to select properly what adapters you need to make sure you don't have to delay an urgent job due to lacking an adapter (or two...).
The kit we recommend includes what we mostly use, which may be a bit more expensive than the standard option, but avoids to spend time in evaluating what to get and what not to.
If you prefer to make your own configuration, contact us with the chips you need to read and we will tailor the kit to your needs!
Currently last software update is available at this link. You can download it to check what chips are exactly supported without connecting a device.
The main kit includes:

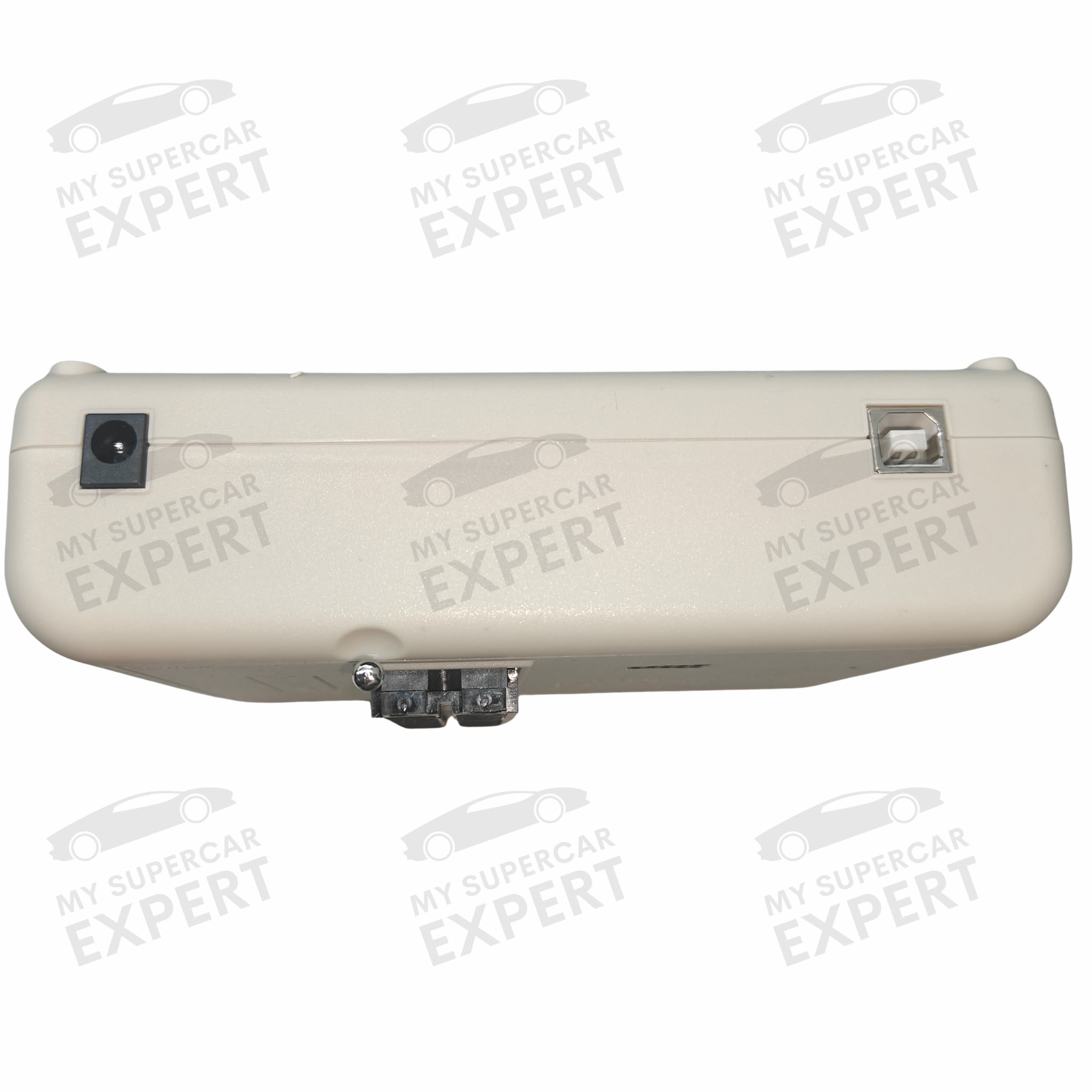

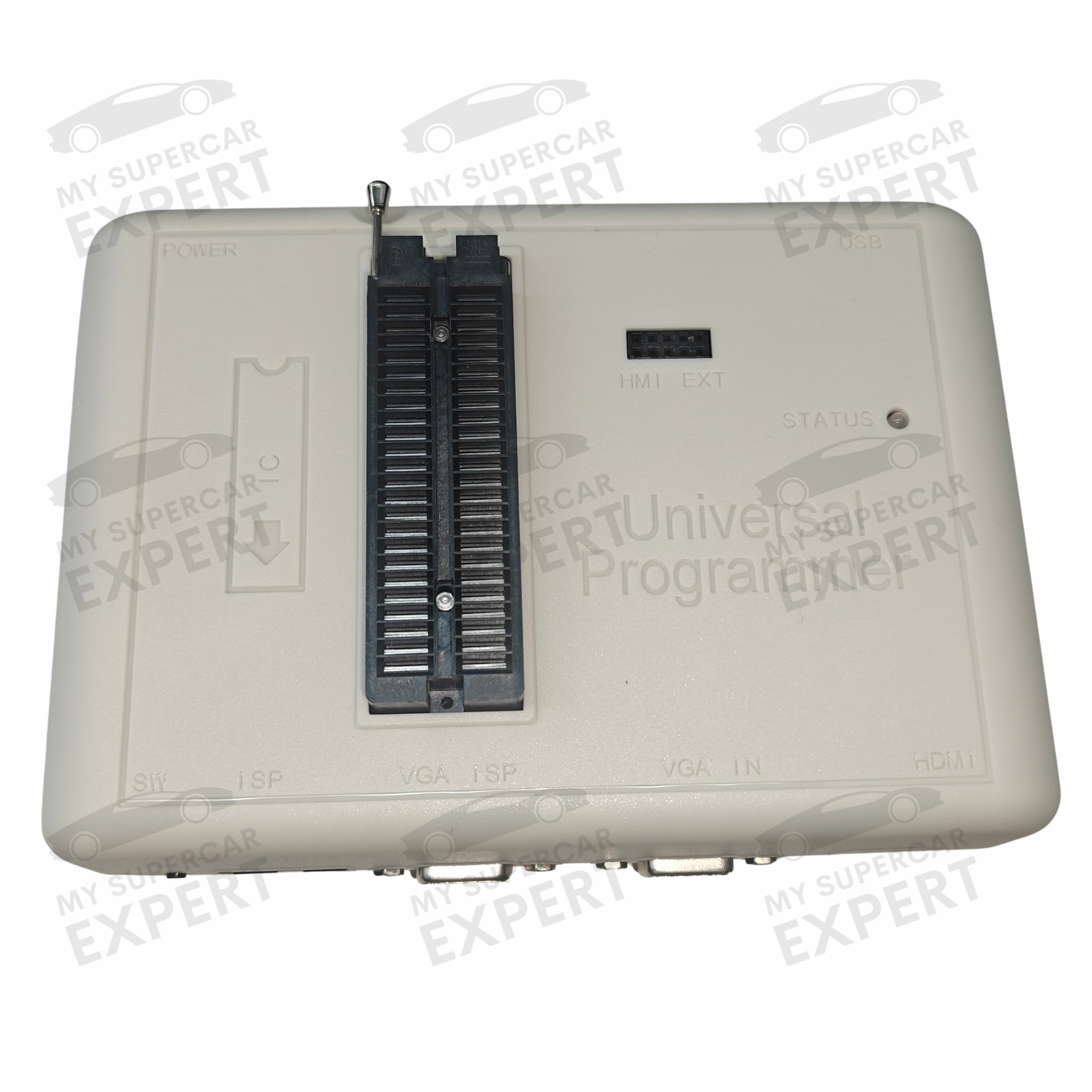

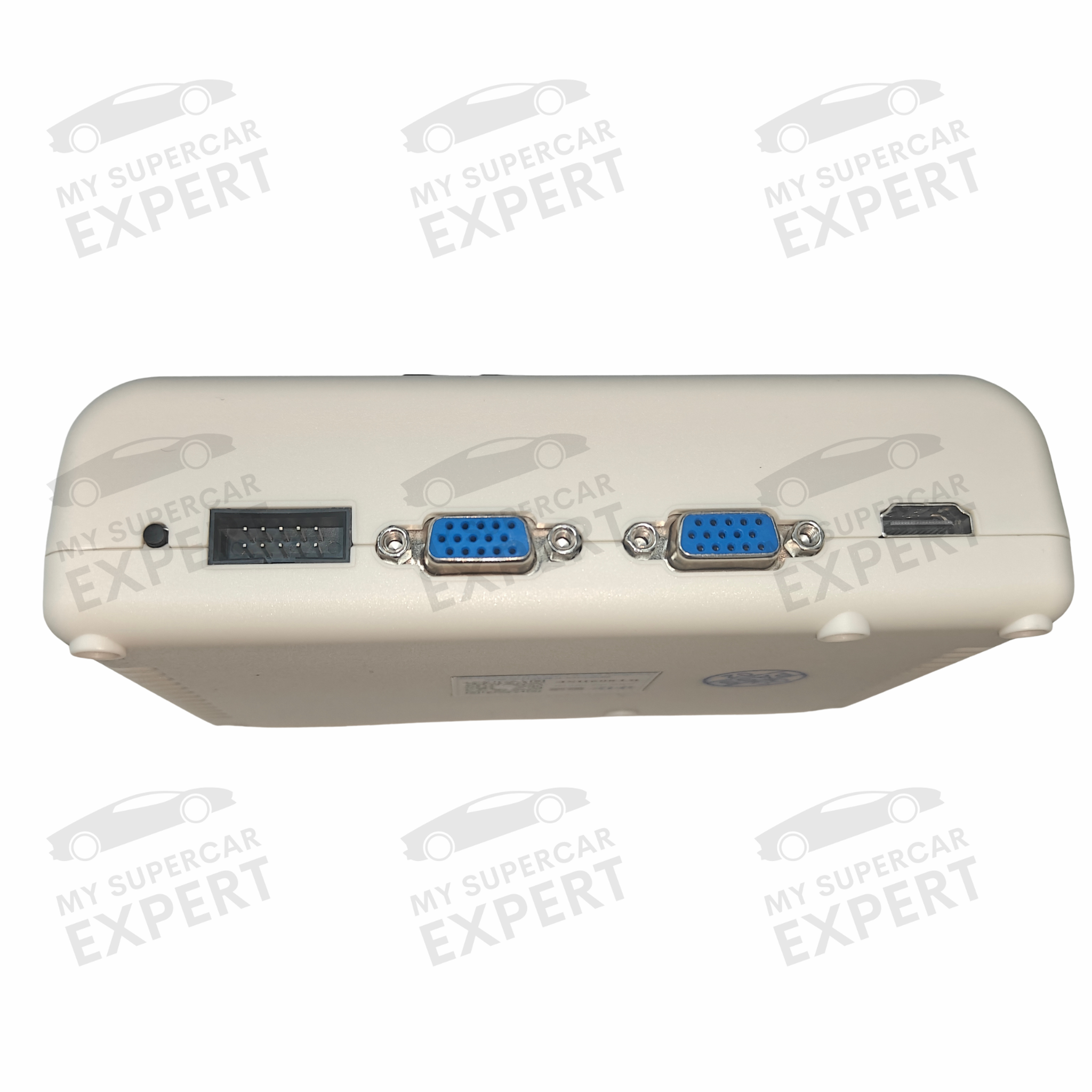

RT809H tool

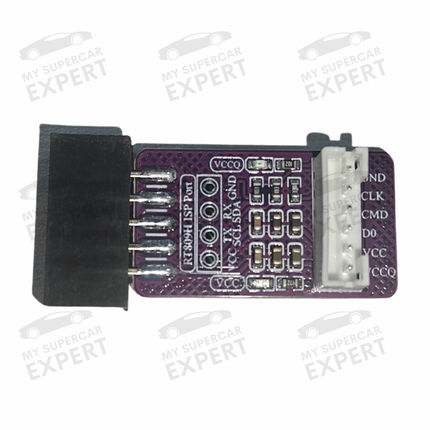

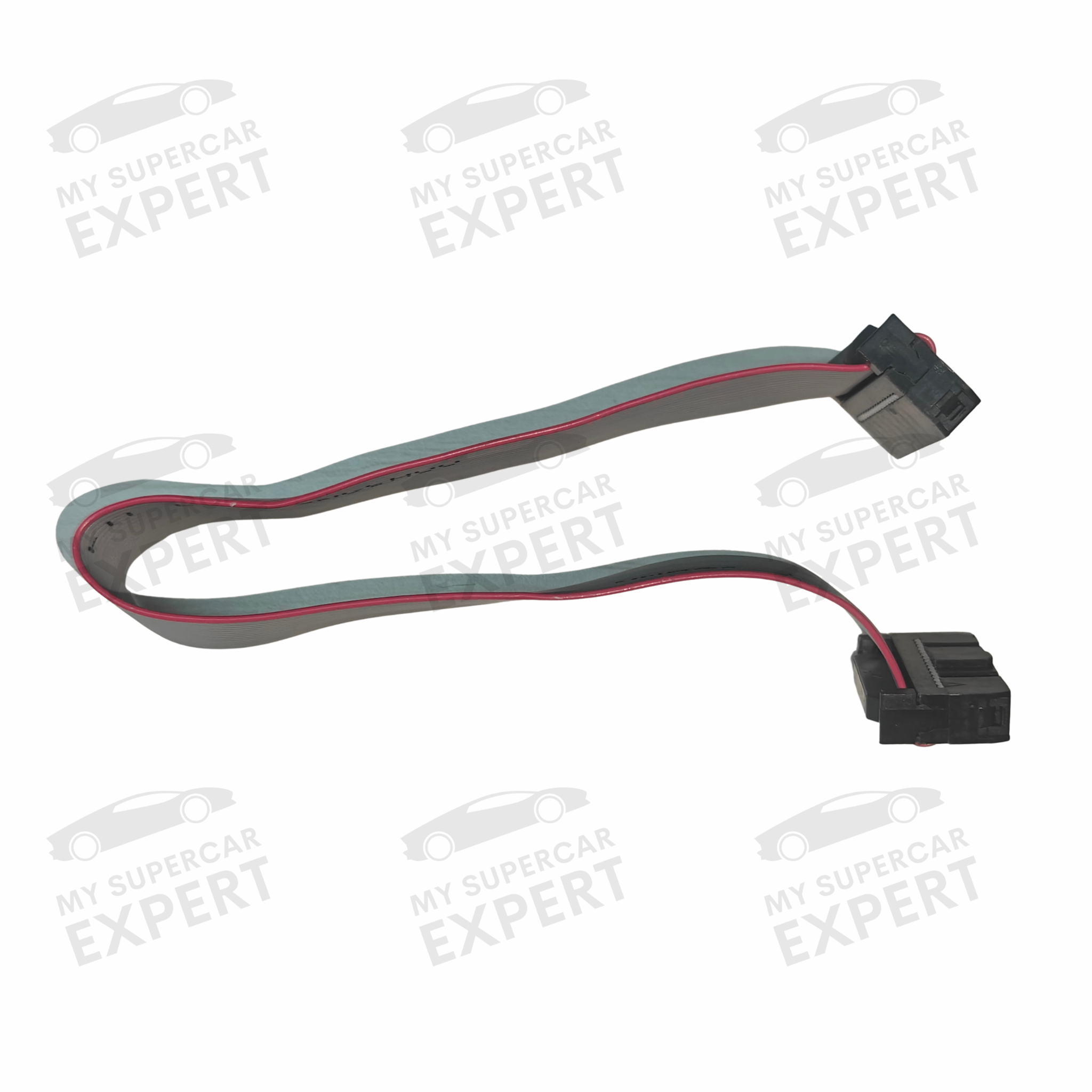

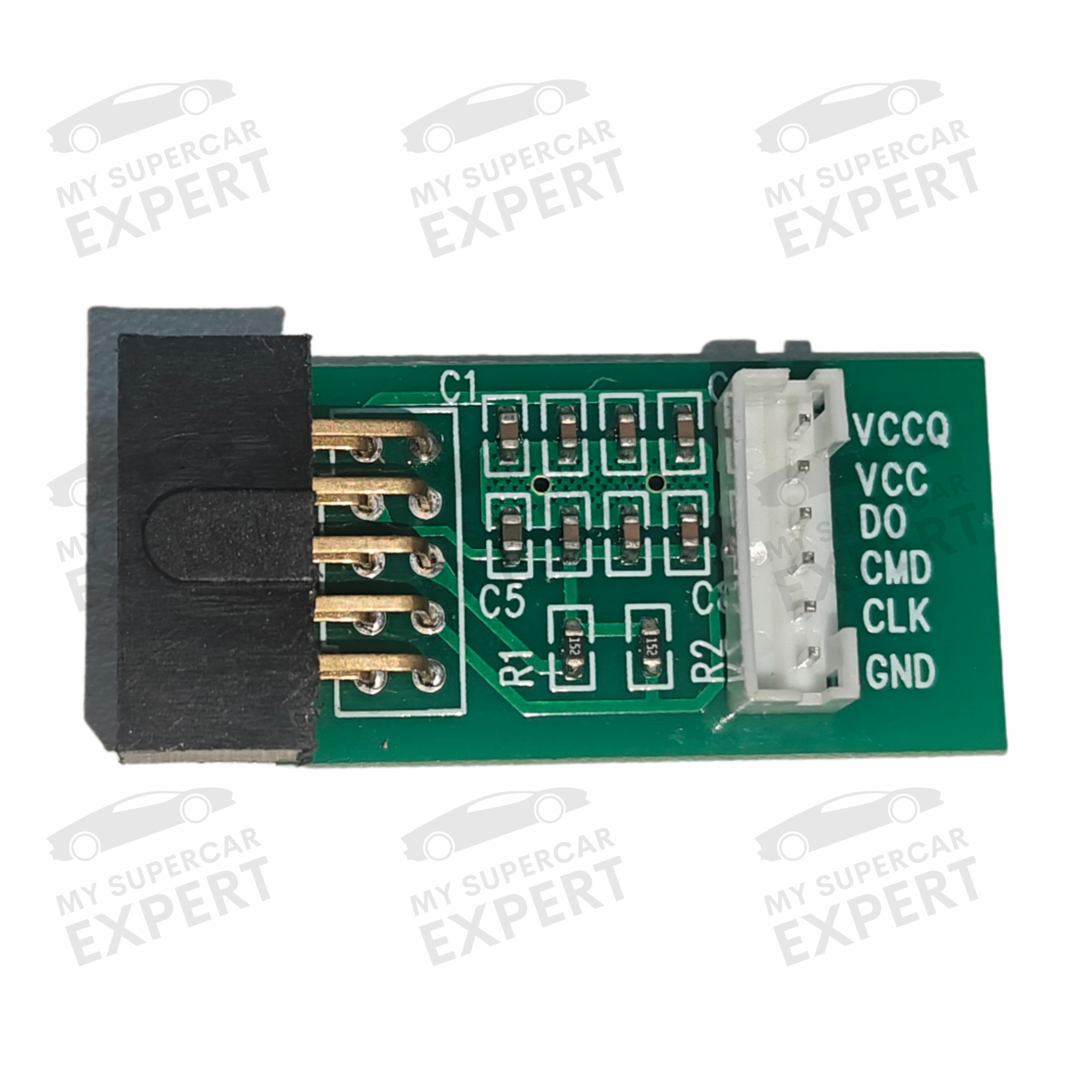

ISP Header01 + cable

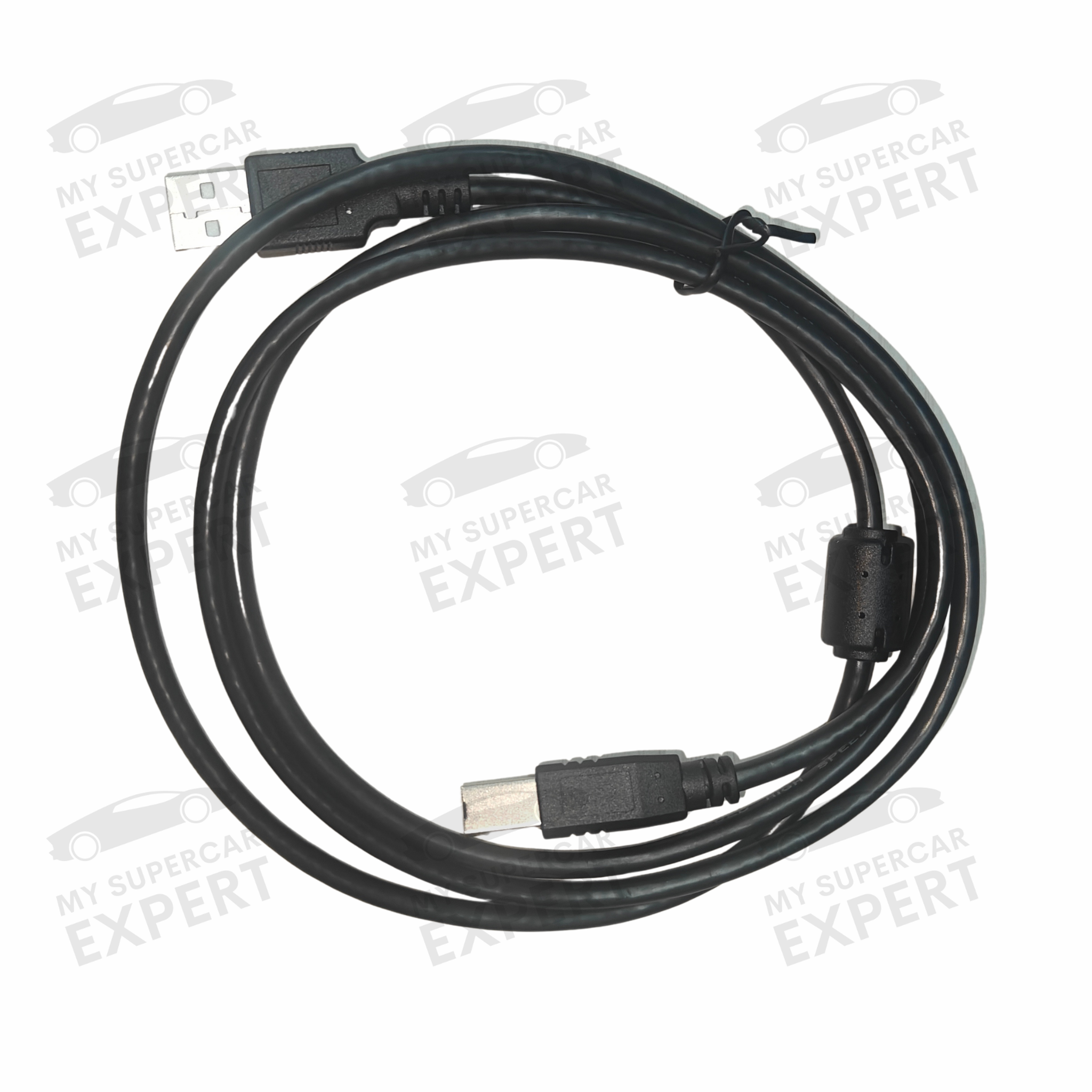

USB Cable

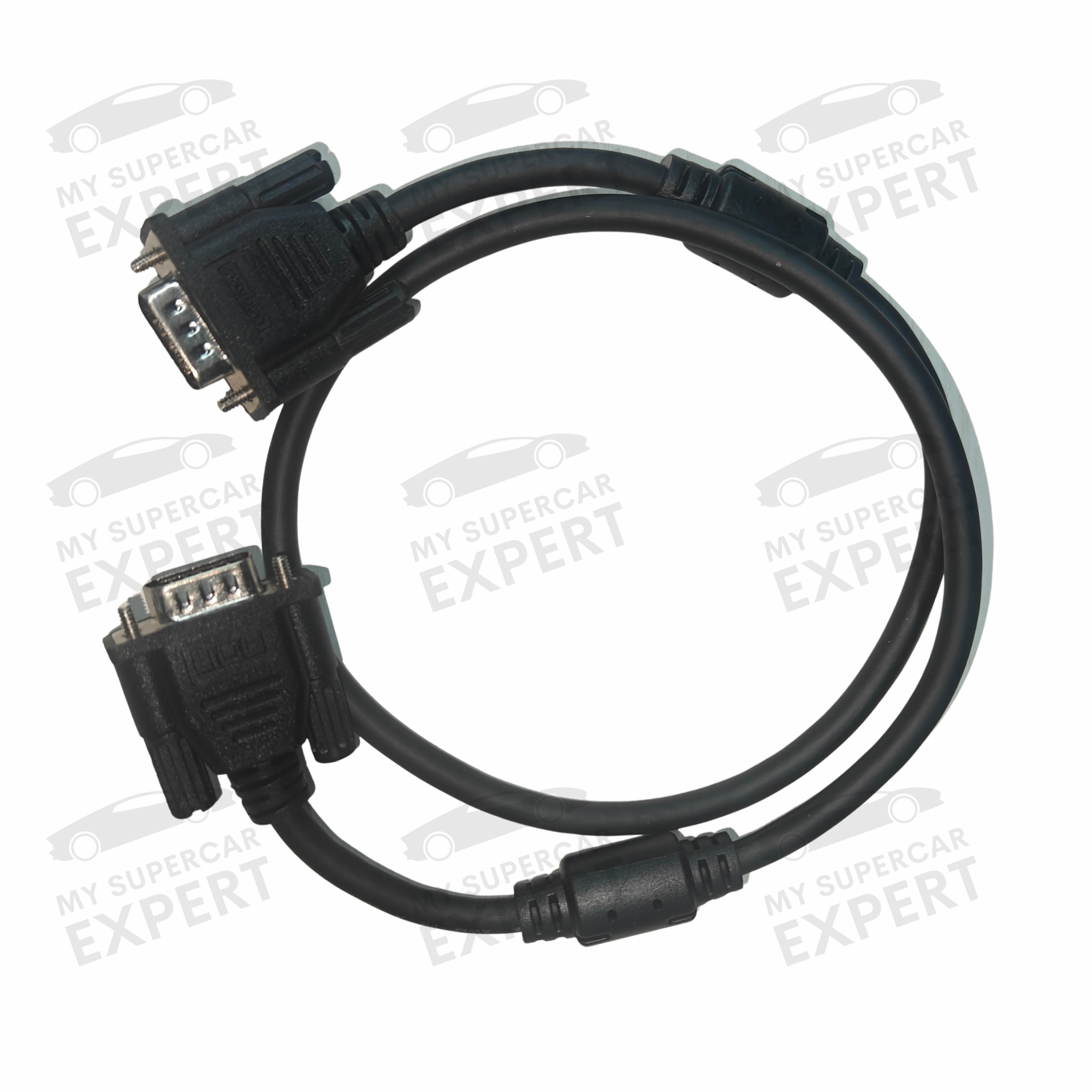

Serial cable

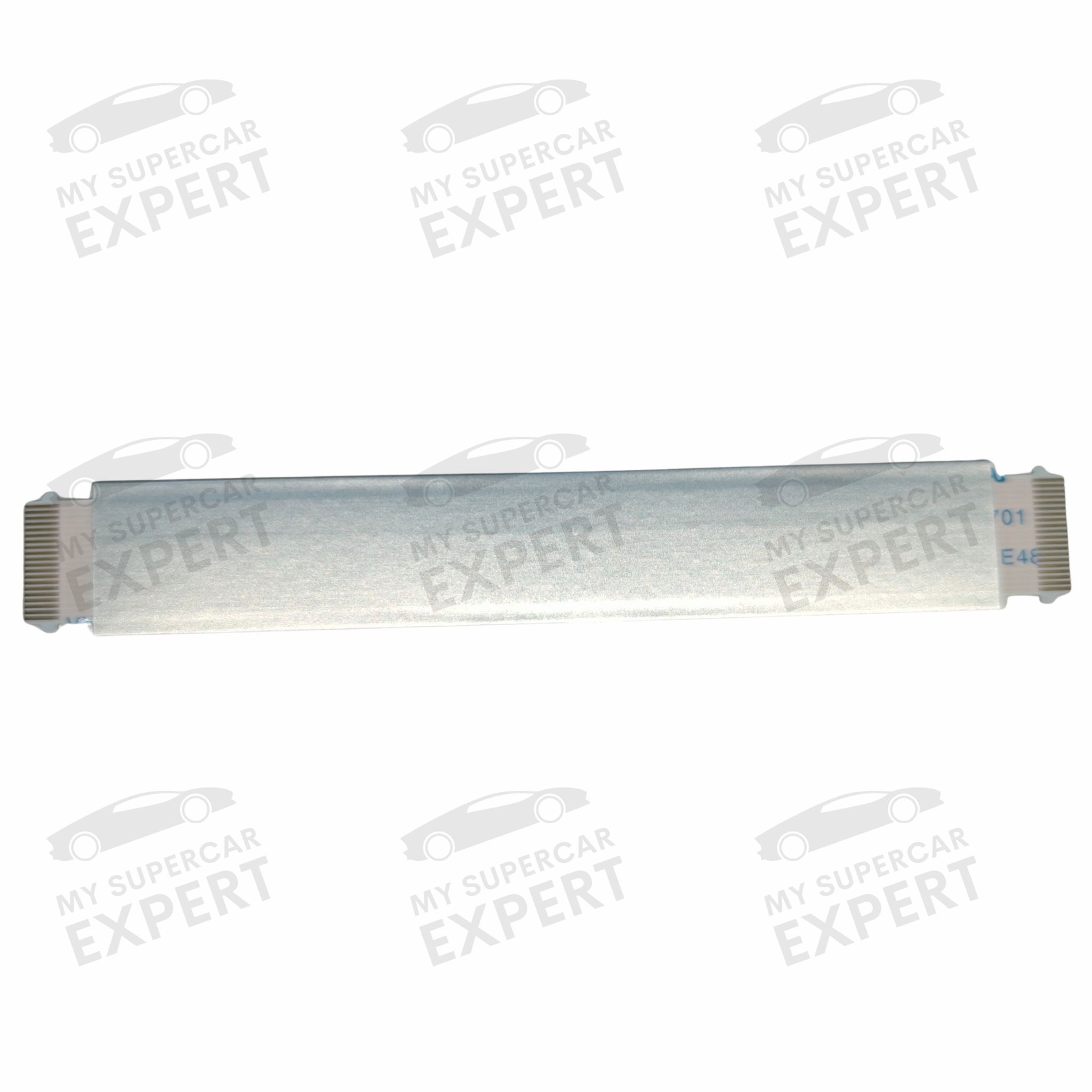

LCD LED coded chip adapter + flat cable

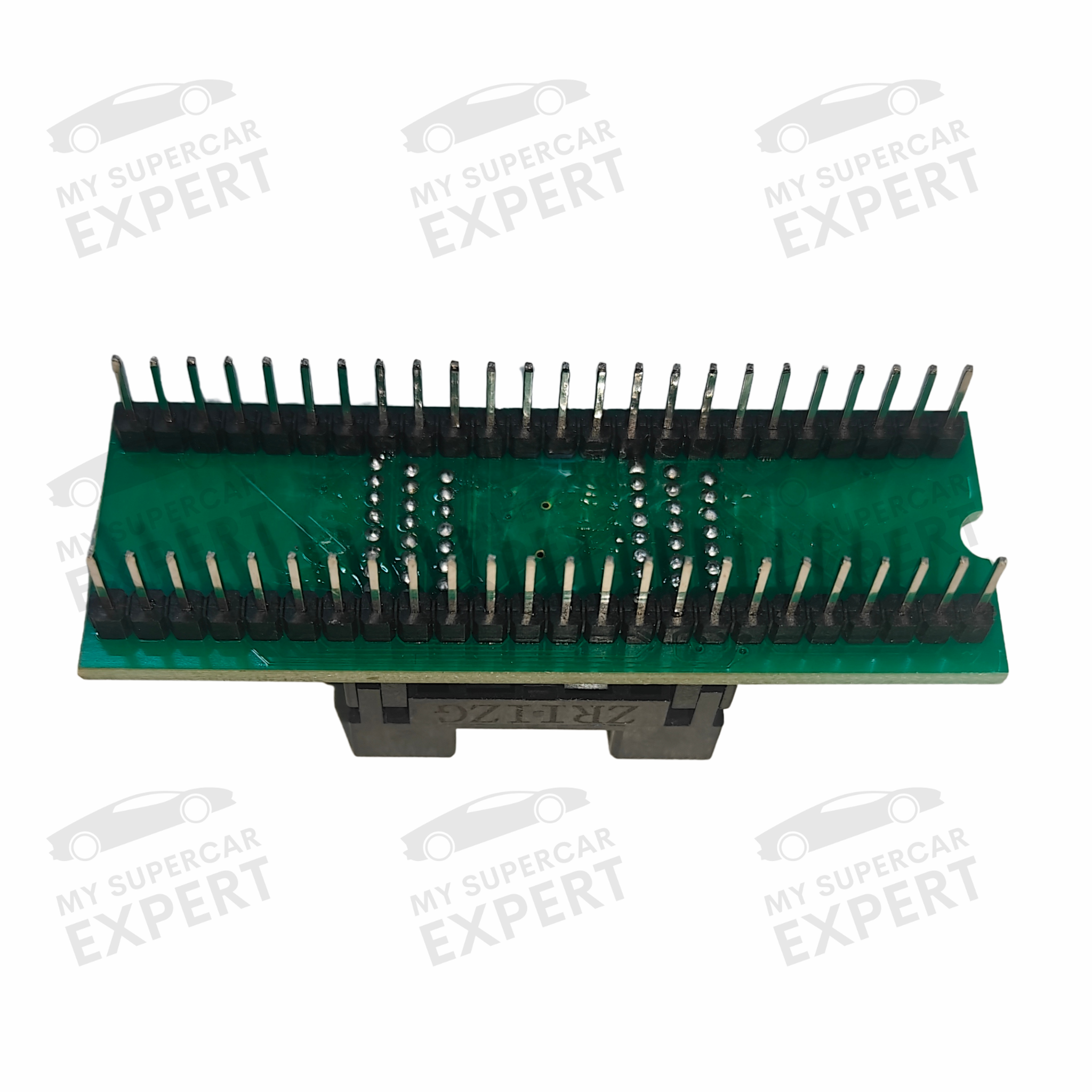

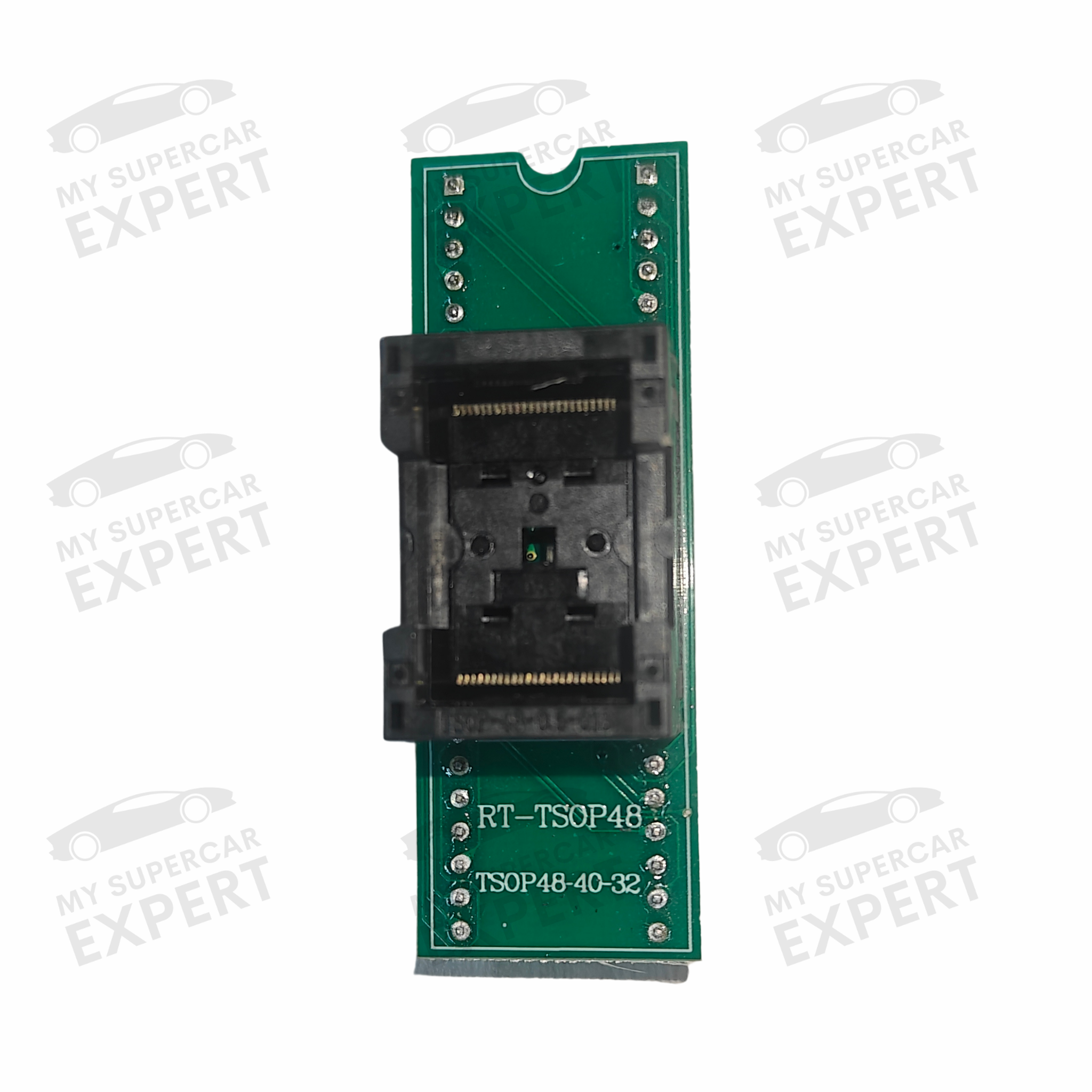

RT-TSOP48 solderless adapter

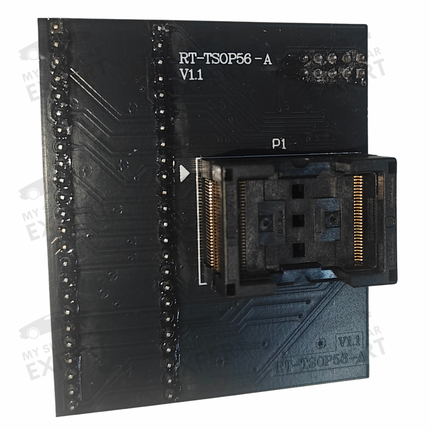

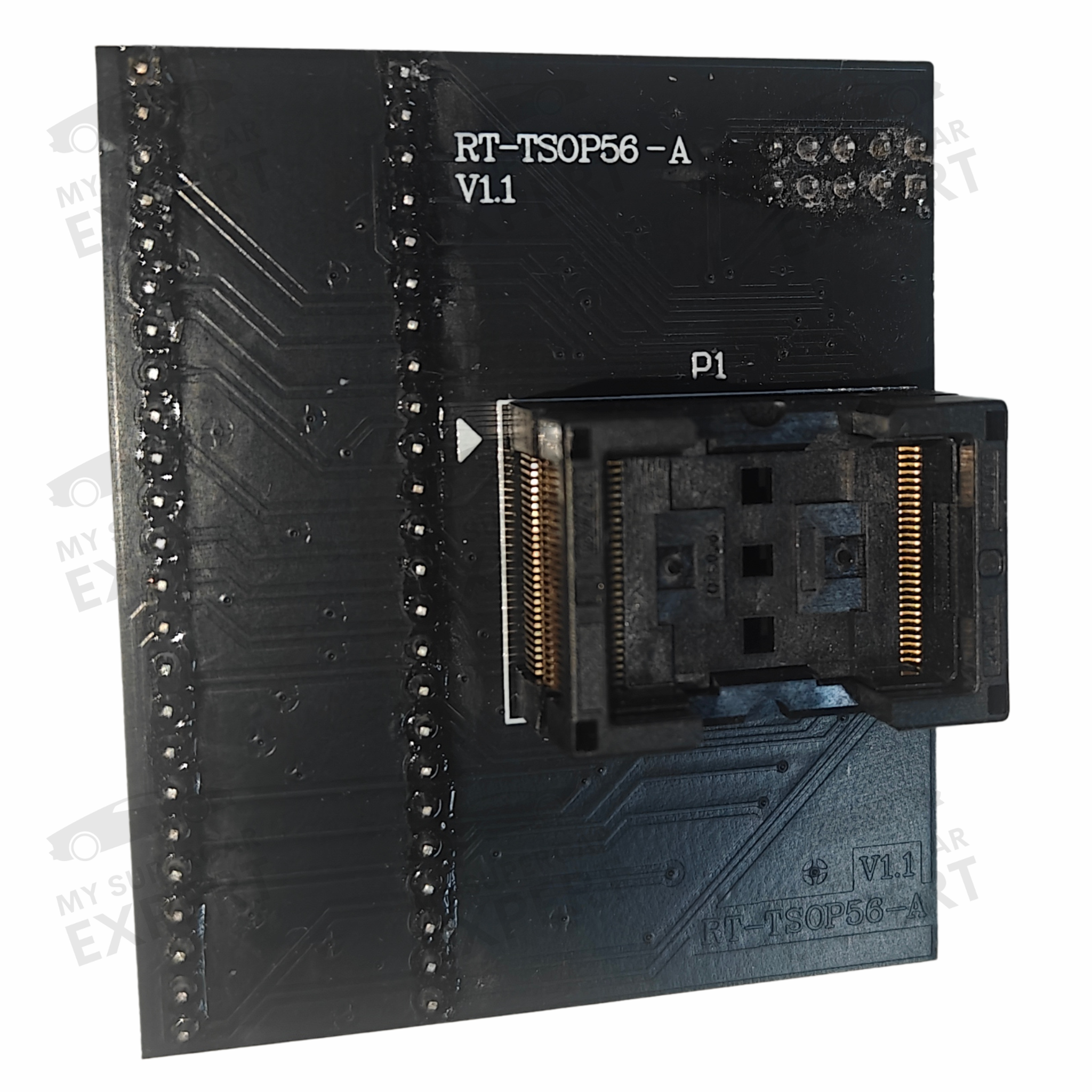

RT-TSOP56-A solderless adapter (v1.1)

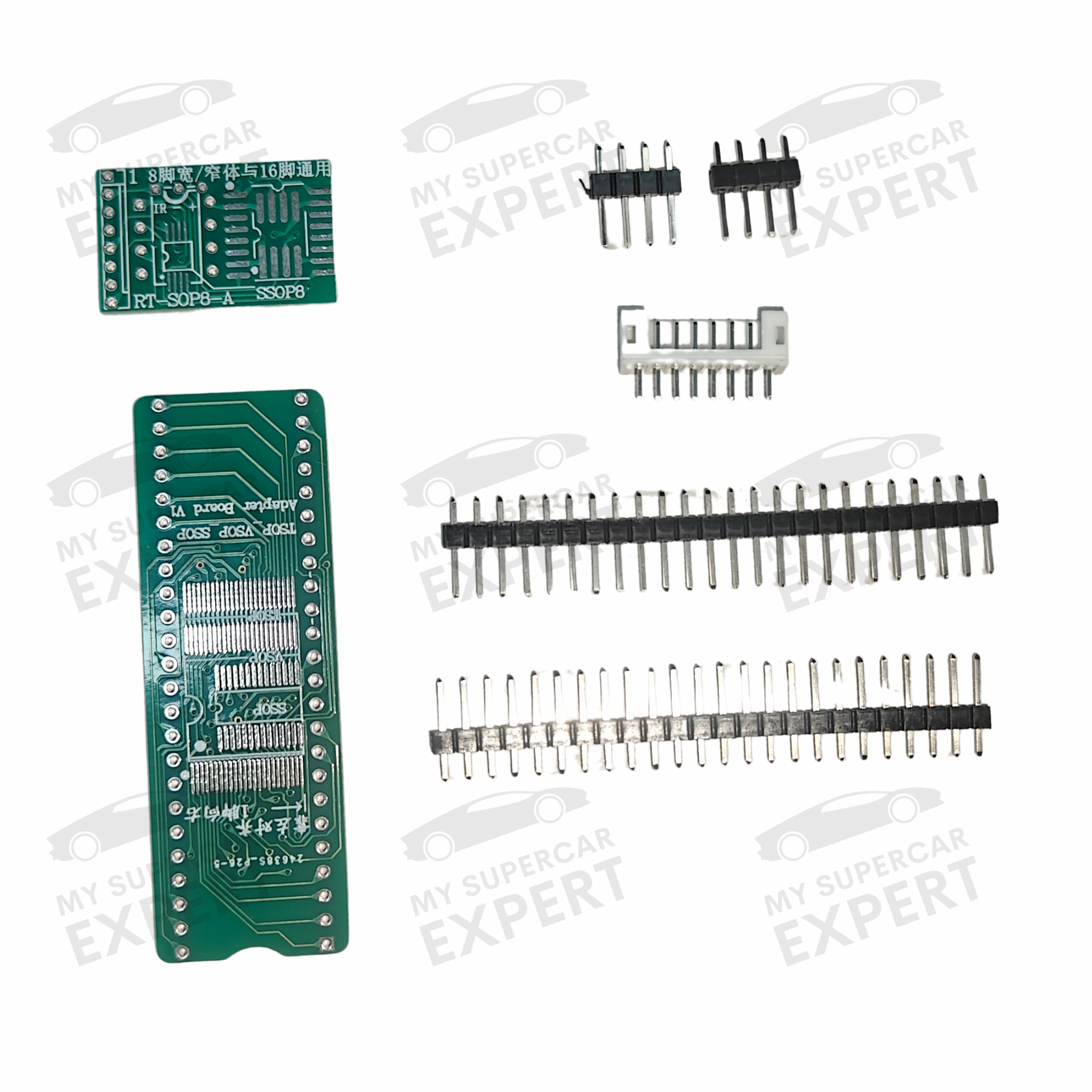

TSOP VSOP SSOP Adapter board V1
RT-SOP8-A board

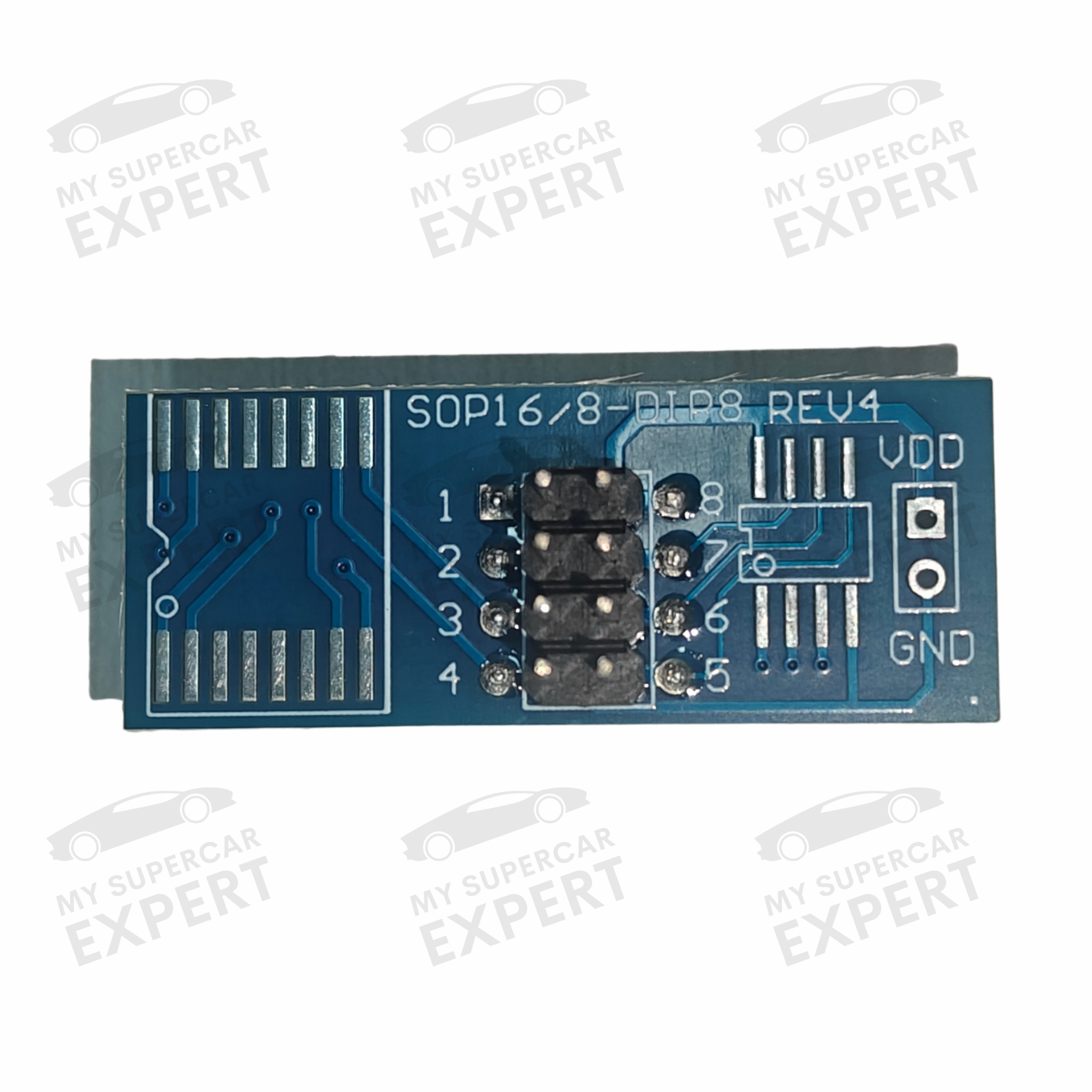

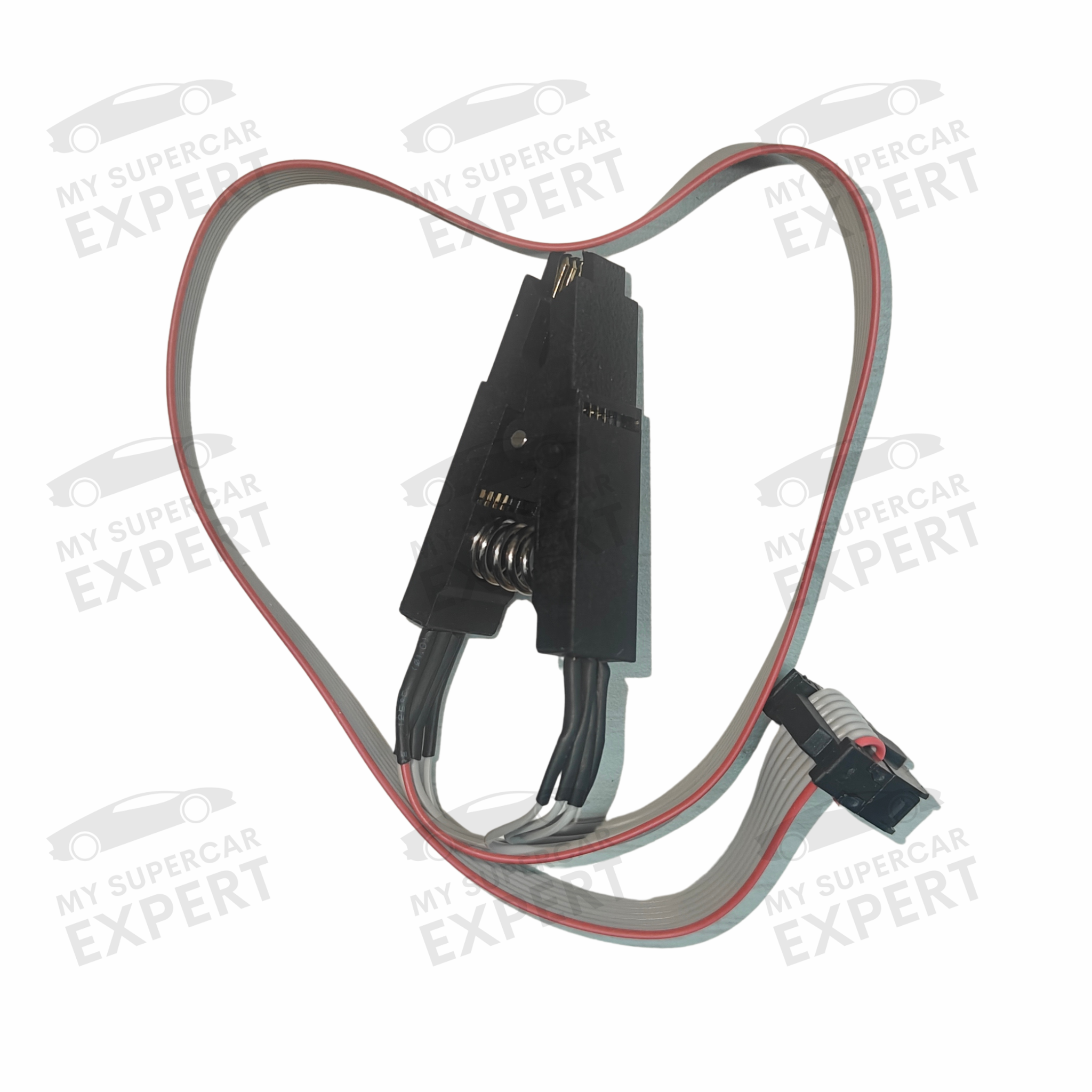

SOP16/8-DIP8 board (rev 4) + clamp
Box with adapters:
1.8V Adapter board
ICSP Adapter (PIC12F675/629) board
PLCC-28-24 solderless adapter
PLCC-28-28 solderless adapter
PLCC32 solderless adapter
PLCC44-DIP40 solderless adapter
PLCC44-DIP44 solderless adapter
TSOP48 Solderless adapter
F200/F400/F800/160B TSOP44 solderless adapter (for flashes like AM29F400, AM29F800 etc)
TSOP 16 solderless adapter
TSOP 20 solderless adapter
SOP8 solderless adapter 200mm
SOP8 solderless adapter 150mm
SOP8/16 solderless adapter 200mm
SOP8/16 solderless adapter 150mm
SOP 20 solderless adapter
PLCC20-20 solderless adapter
CNV-SOP20 solderless adapter
SOP28-DIP28 solderless adapter
NPCE288/388 board (v1.1)
SOP8/16 + MSOP8/SSOP8 board * 2
SSOP4 28 pin 0.65 mm + 1.27 mm board * 2
SSOP14 0.65mm + 1.27 mm board * 2
RT809F KB9012 adapter
TSSOP20/SSOP20 0.65 mm + 1.27 mm board * 2
SOP10 0.5 mm + SOT23 0.95 mm board * 2
WSON8 -> DIP8 (6*5 mm + 8*6 mm) board * 2
8 pin 0.65mm board * 2
Extra adapters:

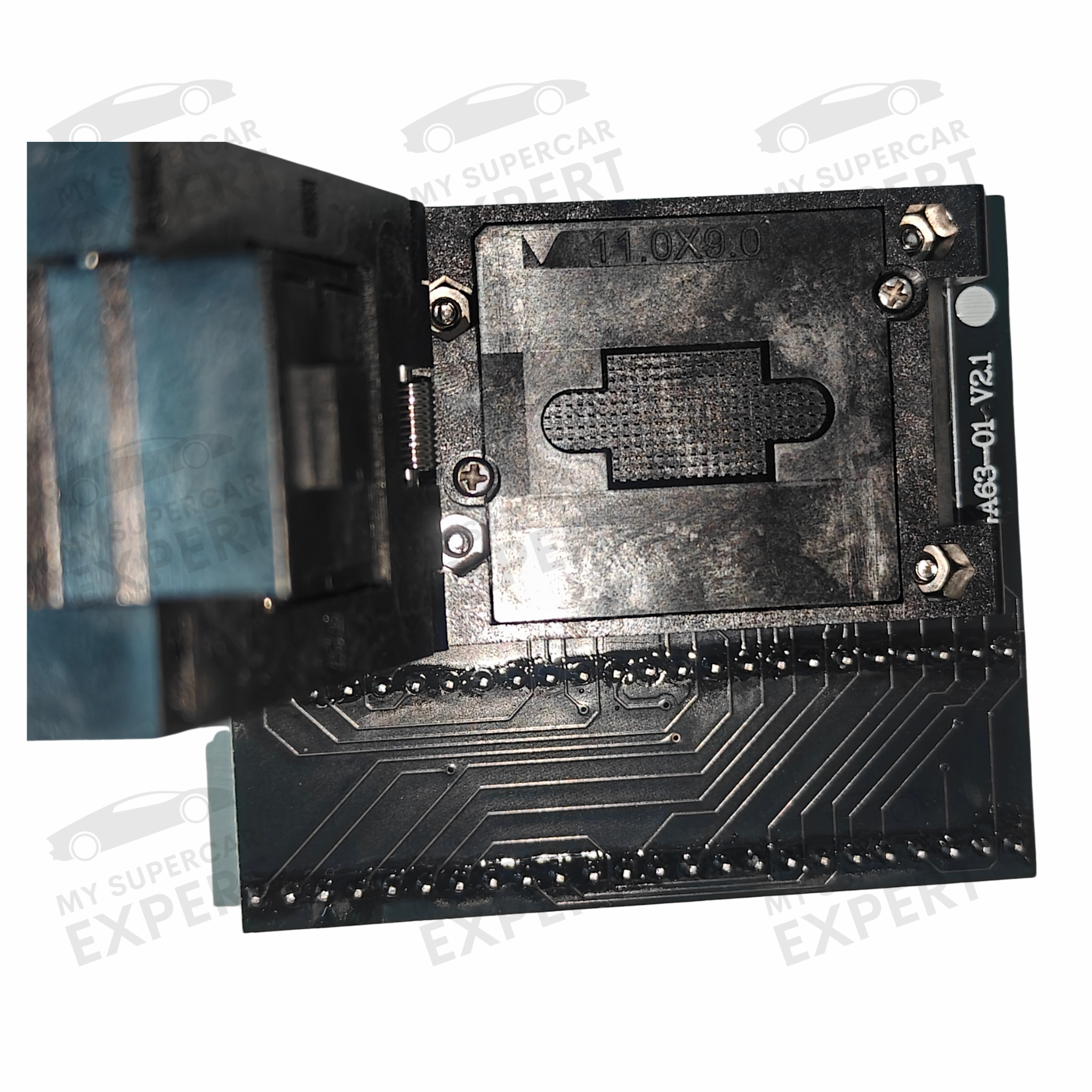

BGA63-01 solderless adapter (v2.1)

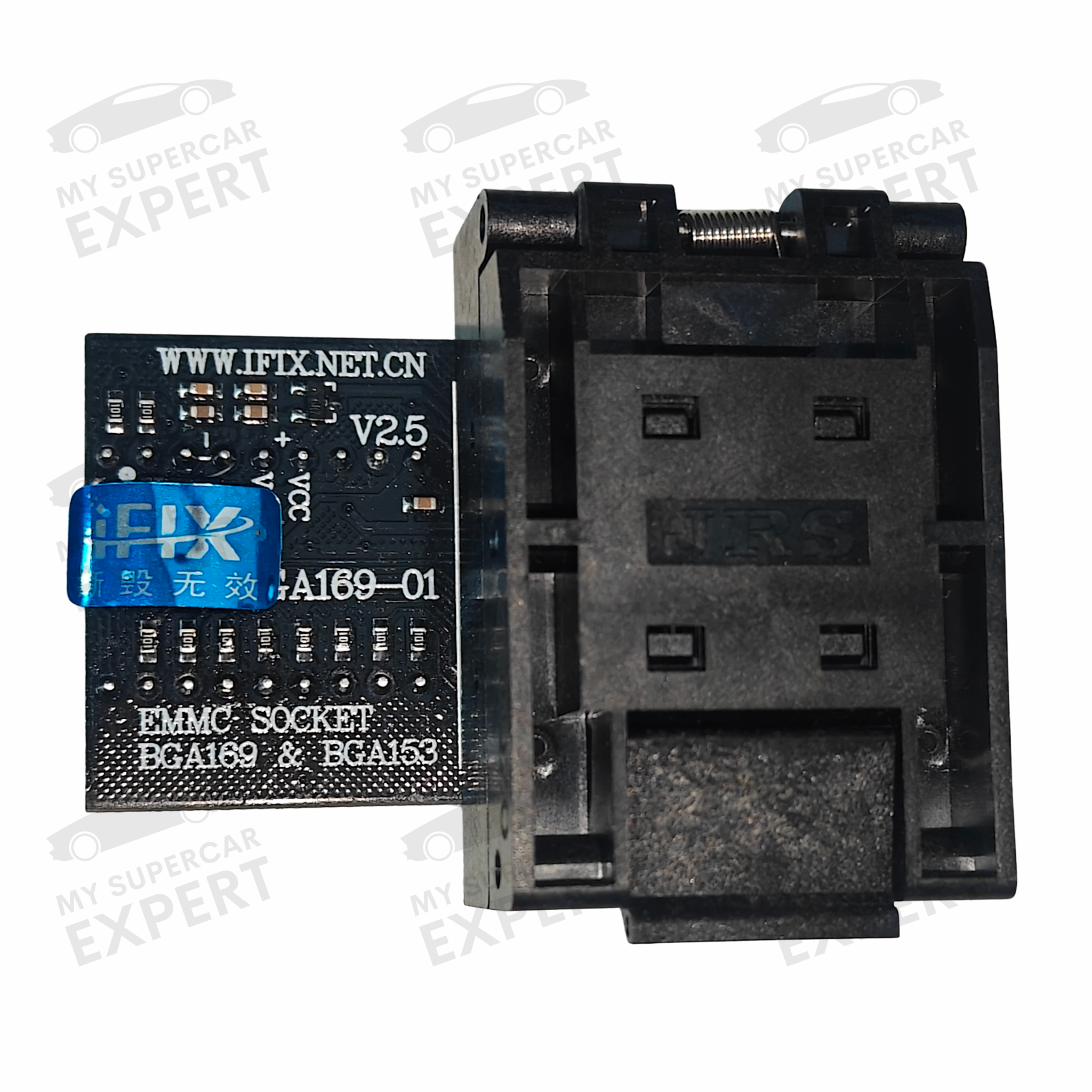

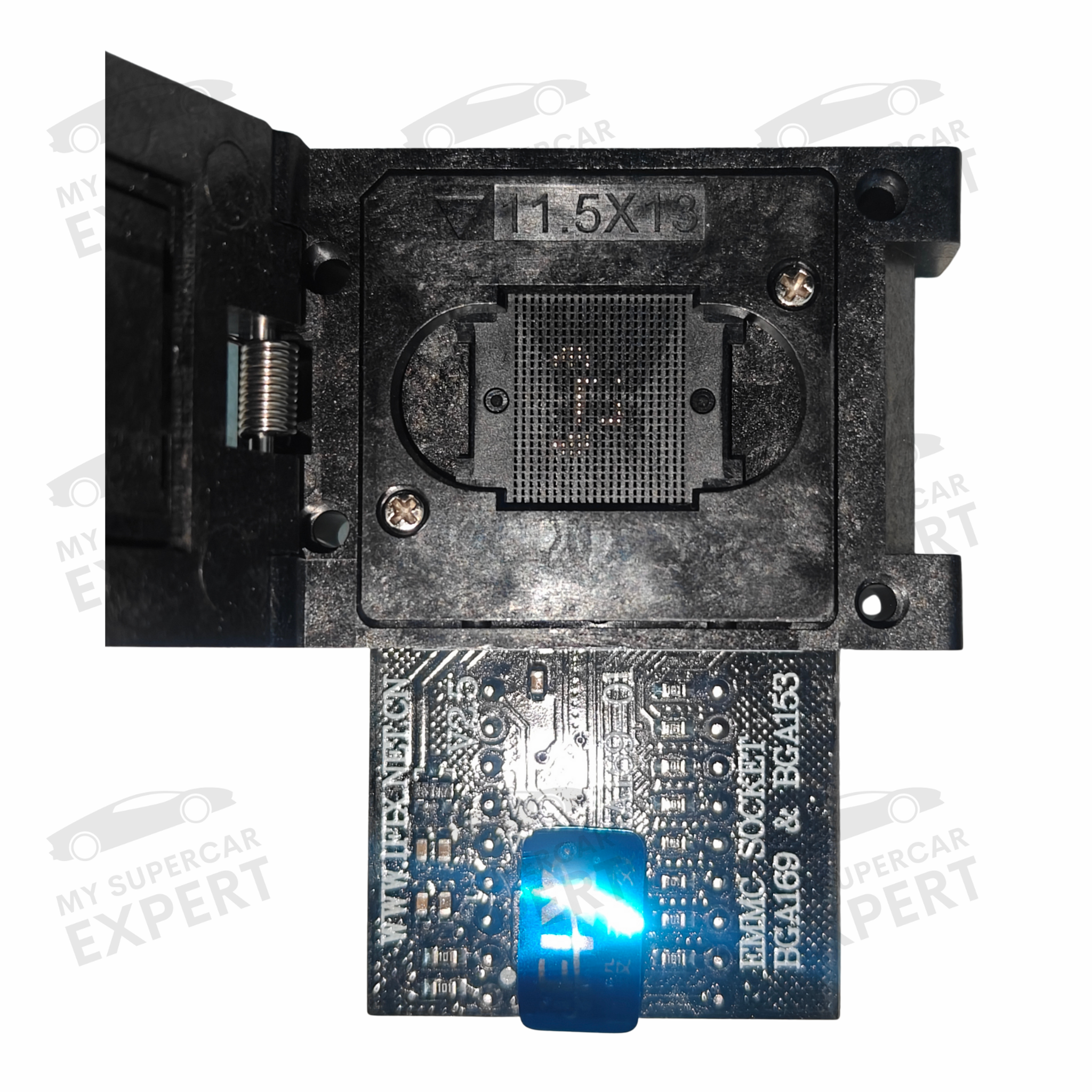

RT-BGA169-01 (+BGA153) solderless adapter (v2.51) for EMMC

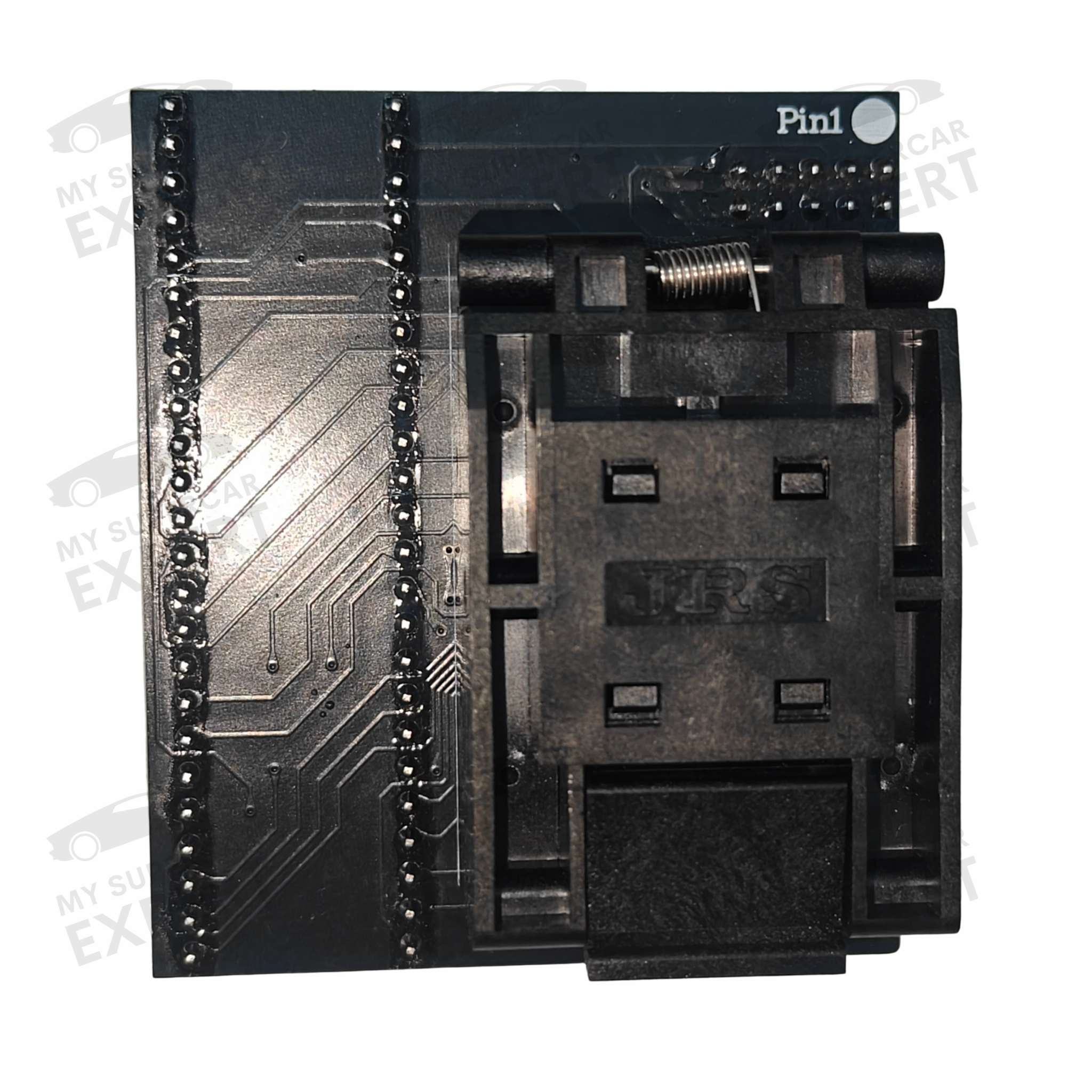

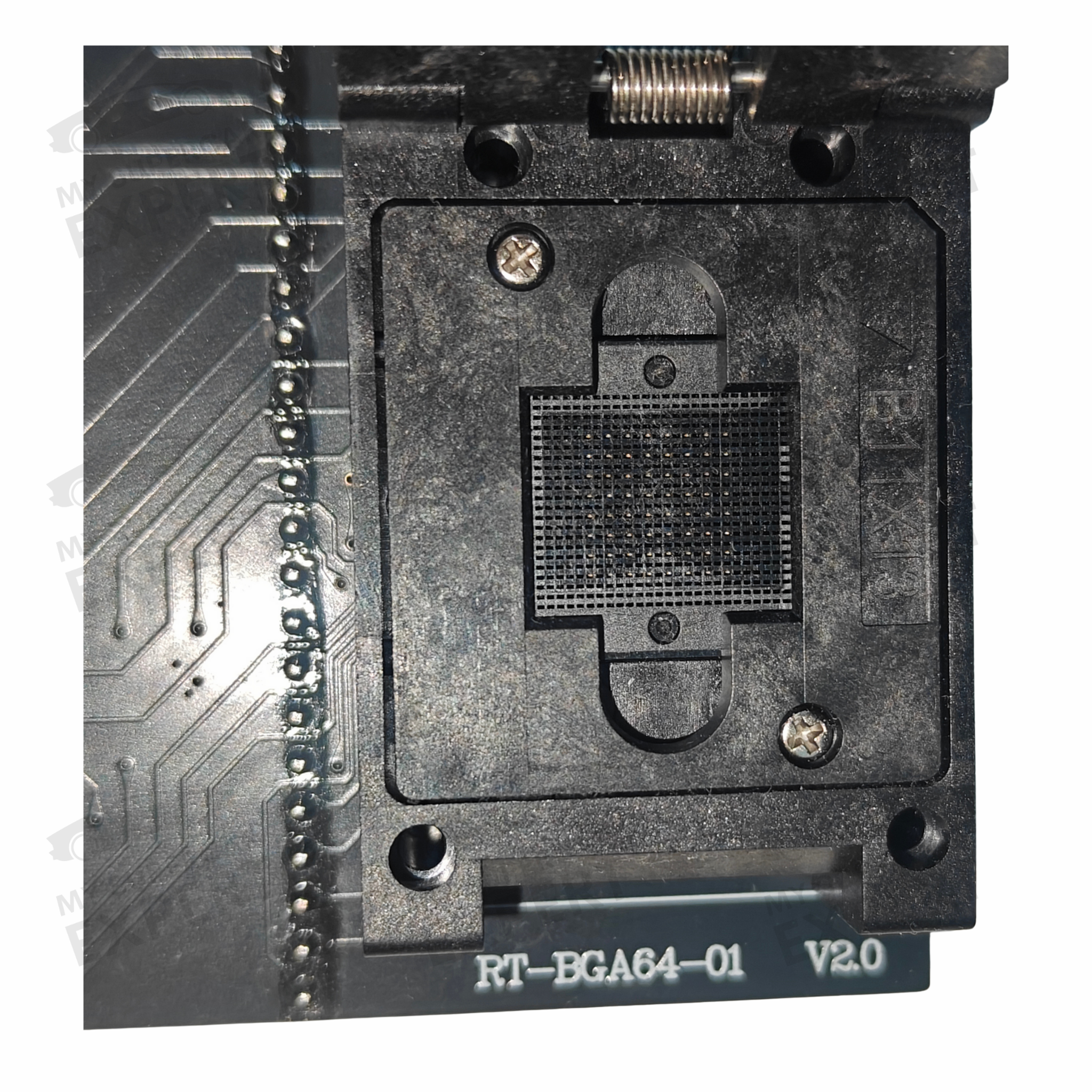

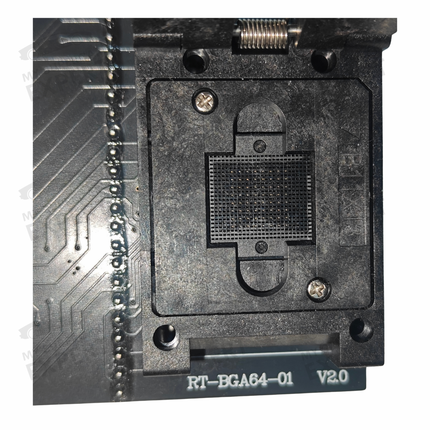

RT-BGA64-01 solderless adapter (v2.0)

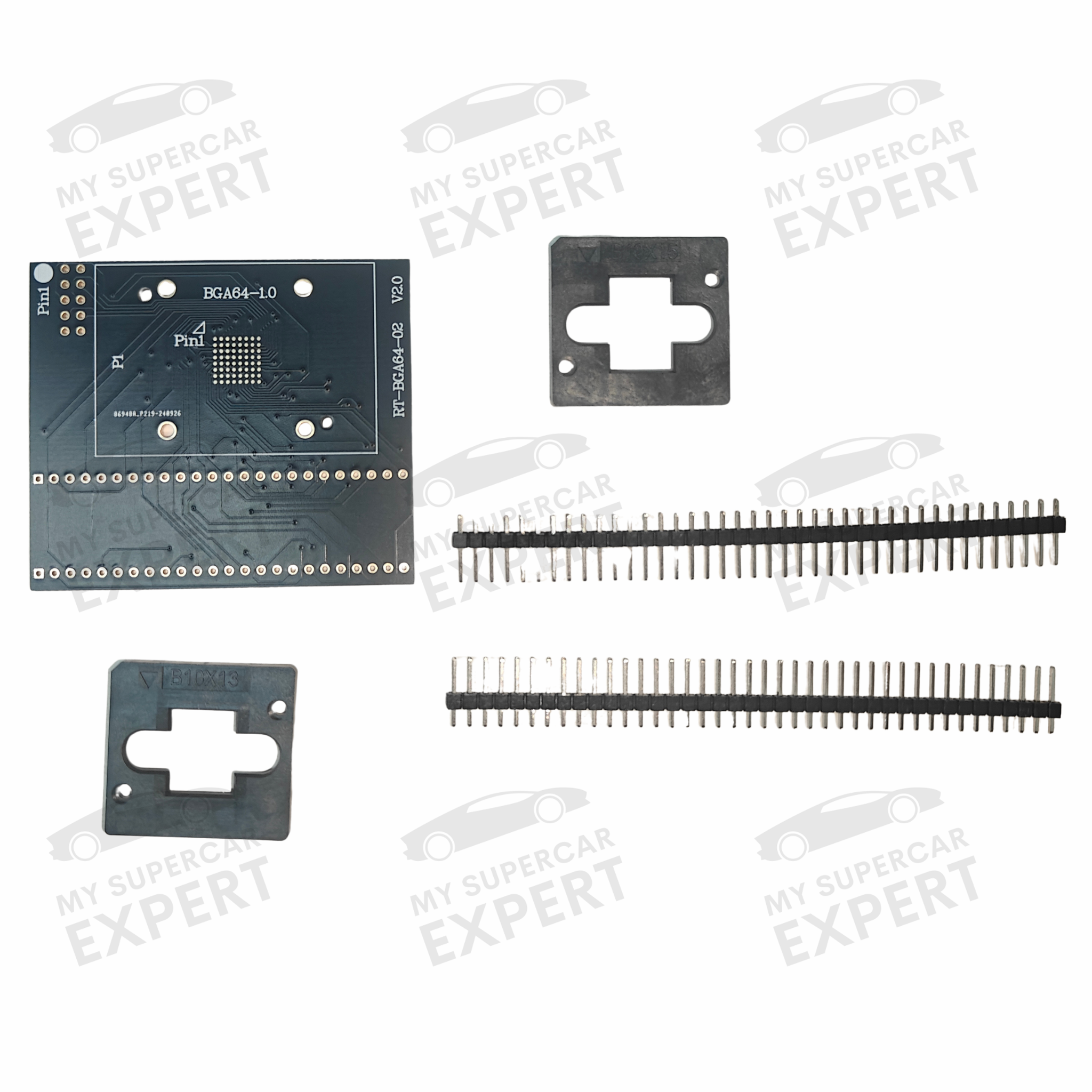

RT-BGA64-02 board (v2.2)
Gift set:
FFQ 939 Vacuum sucking pen
TY-610 PLCC Extractor
Antistatic bracelet

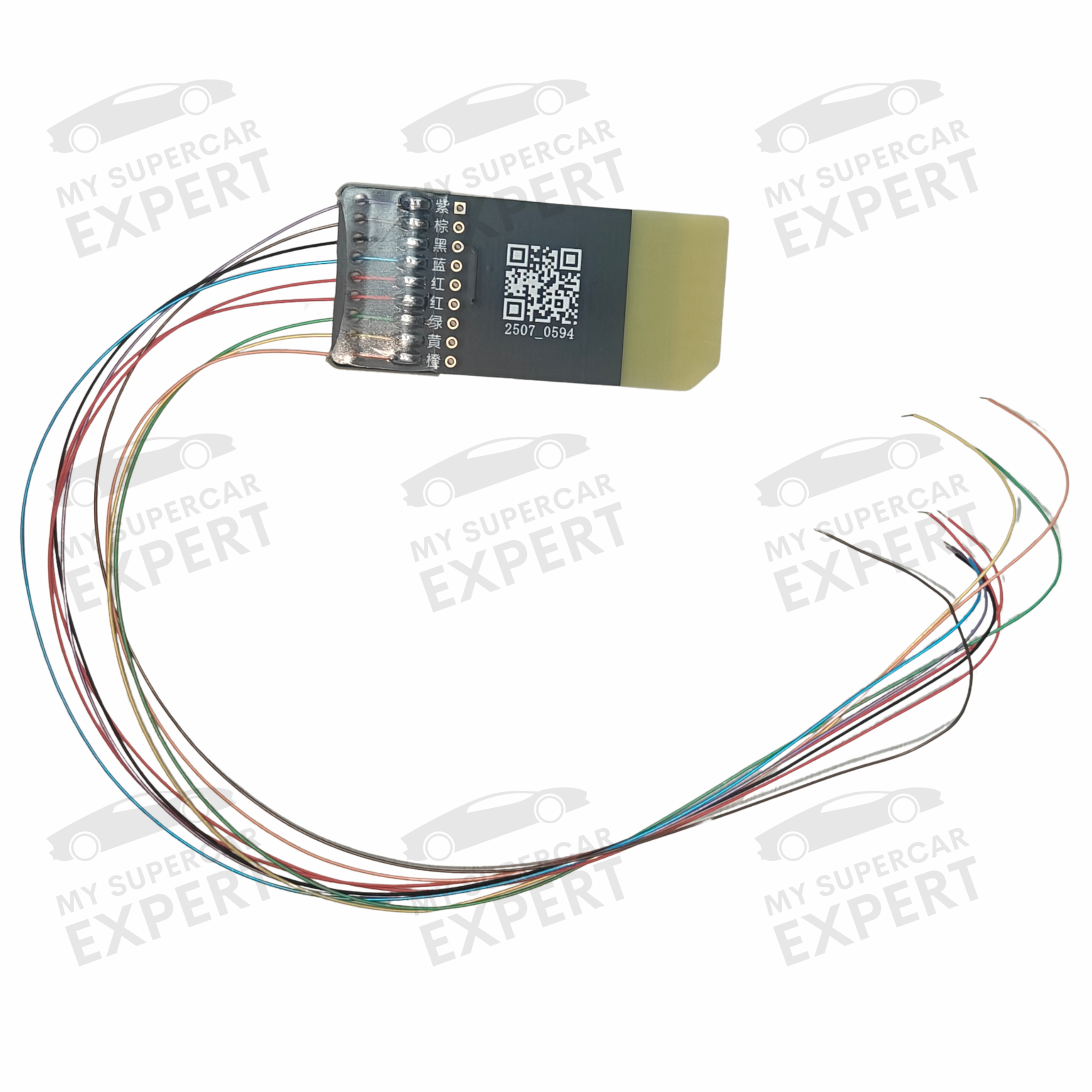

2x5 rainbow cable to male pin 2
HDMI splitting port cable

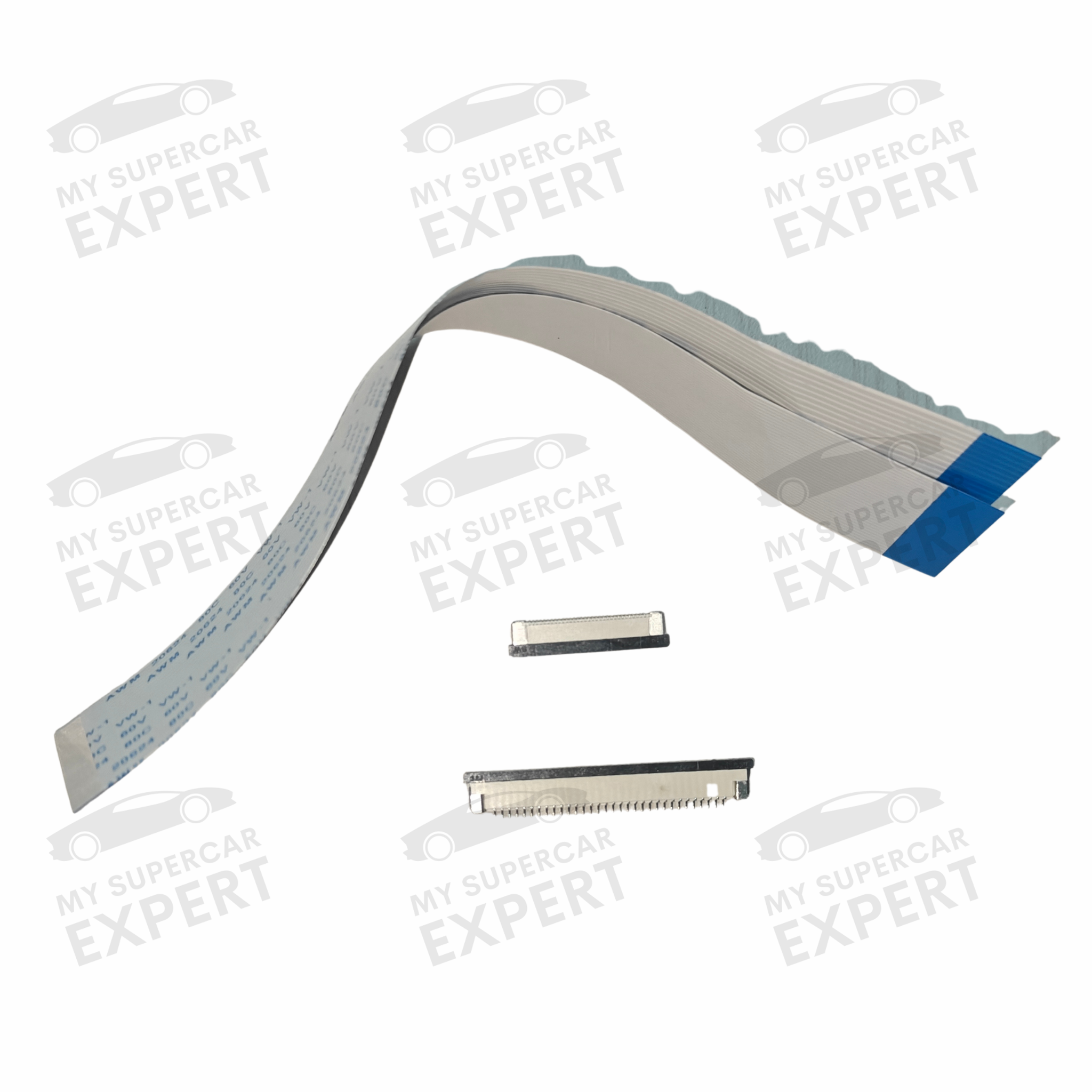

ITE adapter board (v1.5) with flat, 2 flat connectors and jumping wire connectors (6 pin and 8 pin)
