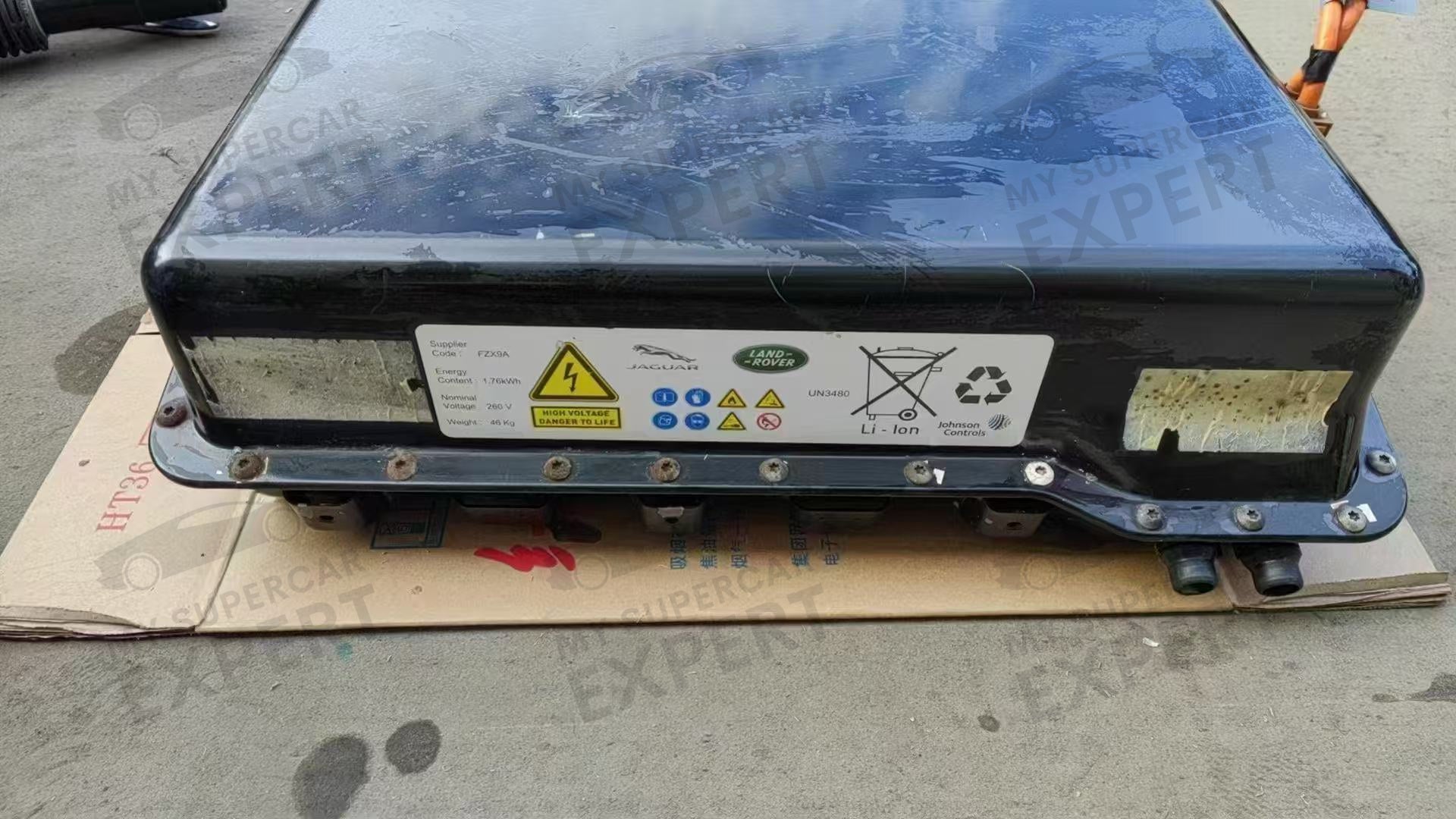

This battery service is divided in two parts:
1. BMS file solution, on MPC5606B. Will need to write only DFLASH file provided by us after comparing it with your readout.
2. Data acquisition board file service, on D70F3375. This is only needed if the data acquisition board has been replaced with one from another battery, and the position does not match. From the battery connector, the first board is 1 (or A), second is 2 (or B), till the last one which is 6 (or F). If the board is put in a position but the file is not the same as its position, it will not work.
These boards usually have hardware faults, some can be resolved (few resistors which have fault), some are less easy so it requires to swap the board instead.
File can be read and written with one of the following:
CG Pro
VVDI Multiprog
Any CPU reader supporting MPC5606B for the BMS;
D70F3375 for the data acquisition boards.
After our BMS file is written, remember to charge your battery to max before reinstalling the BMS back into the battery or it will lock again!
To test if your BMS has not been locked, you need to install the unit on car first.
If all is OK, you will have a good voltage output.
We will refund you if service failed or prepare a new file.
For the data acquisition boards, make sure you ask the correct data according to the destination position on the battery (where the acquisition boards need to fit in the battery you are repairing). These files are fixed so they can be used again and again.
Service provided in few minutes during workhours.
Supported part numbers:
| Brand |
Model |
Type |
Year |
Part no. |
Land Rover
|
Range Rover |
(L405) |
2012-2021 |
|
| Land Rover |
Range Rover Sport P440e |
(L494) |
2013-2022 |
|
| Land Rover |
Range Rover Sport P510e |
(L494) |
2013-2022 |
|
