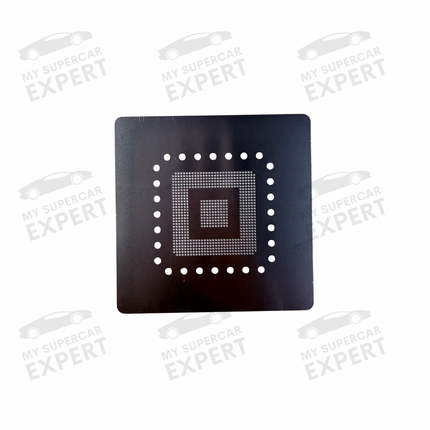

Renesas V850 D70F3539A (BGA 564) CPU Magnetic Stencil for BGA Reballing

Descripción

This BGA stencil kit can be used to reball Renesas V850 D70F3539A CPUs (BGA 564).

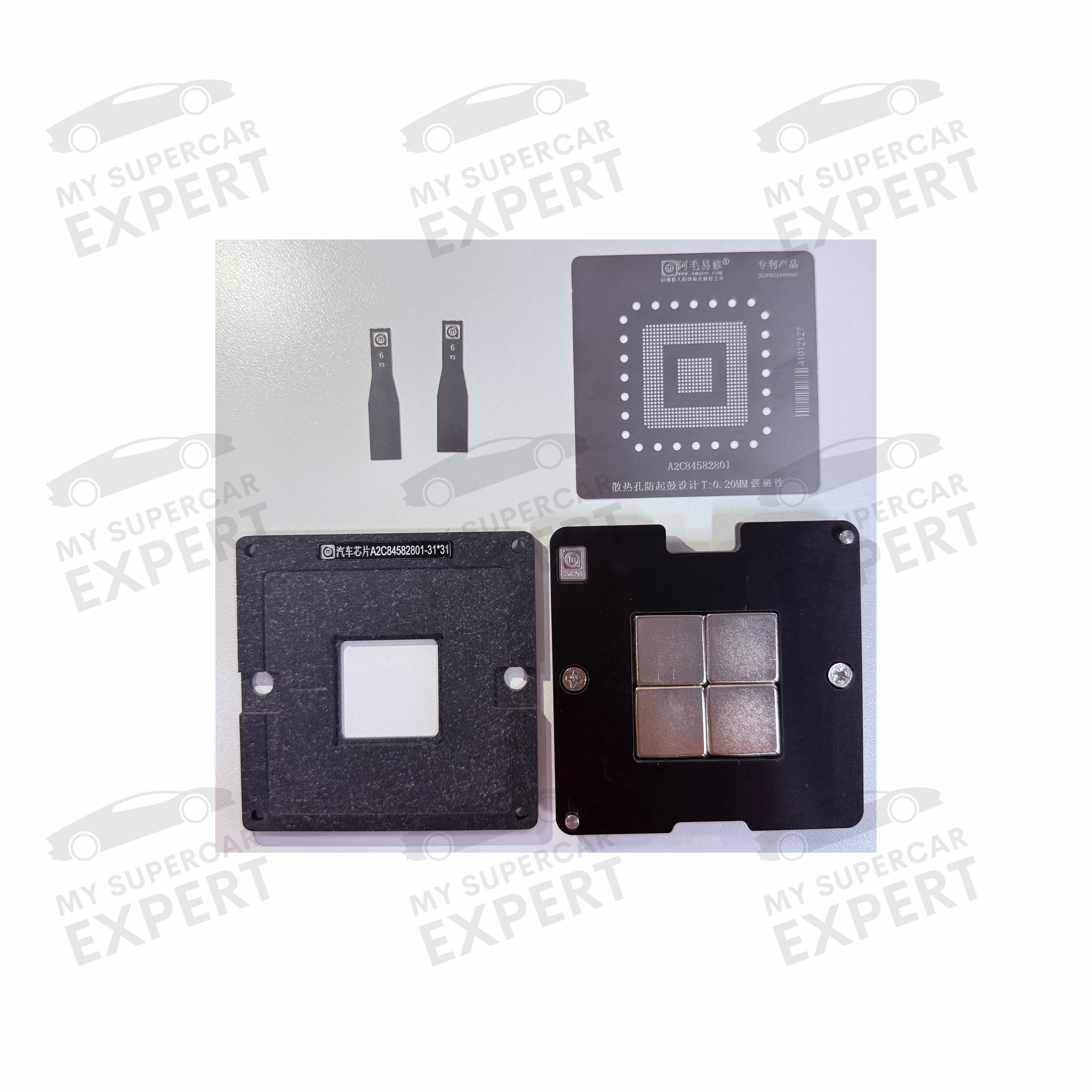

The package includes:

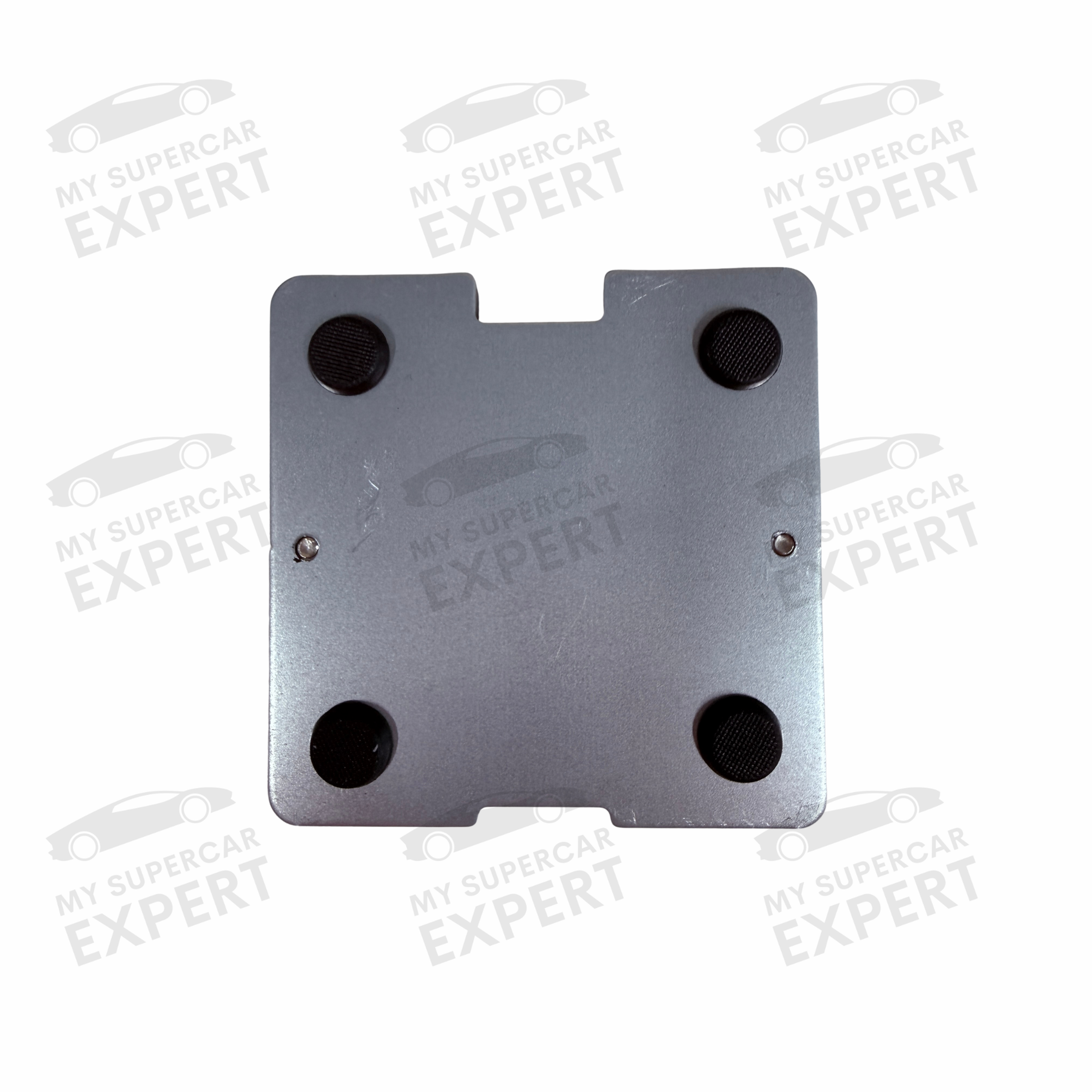

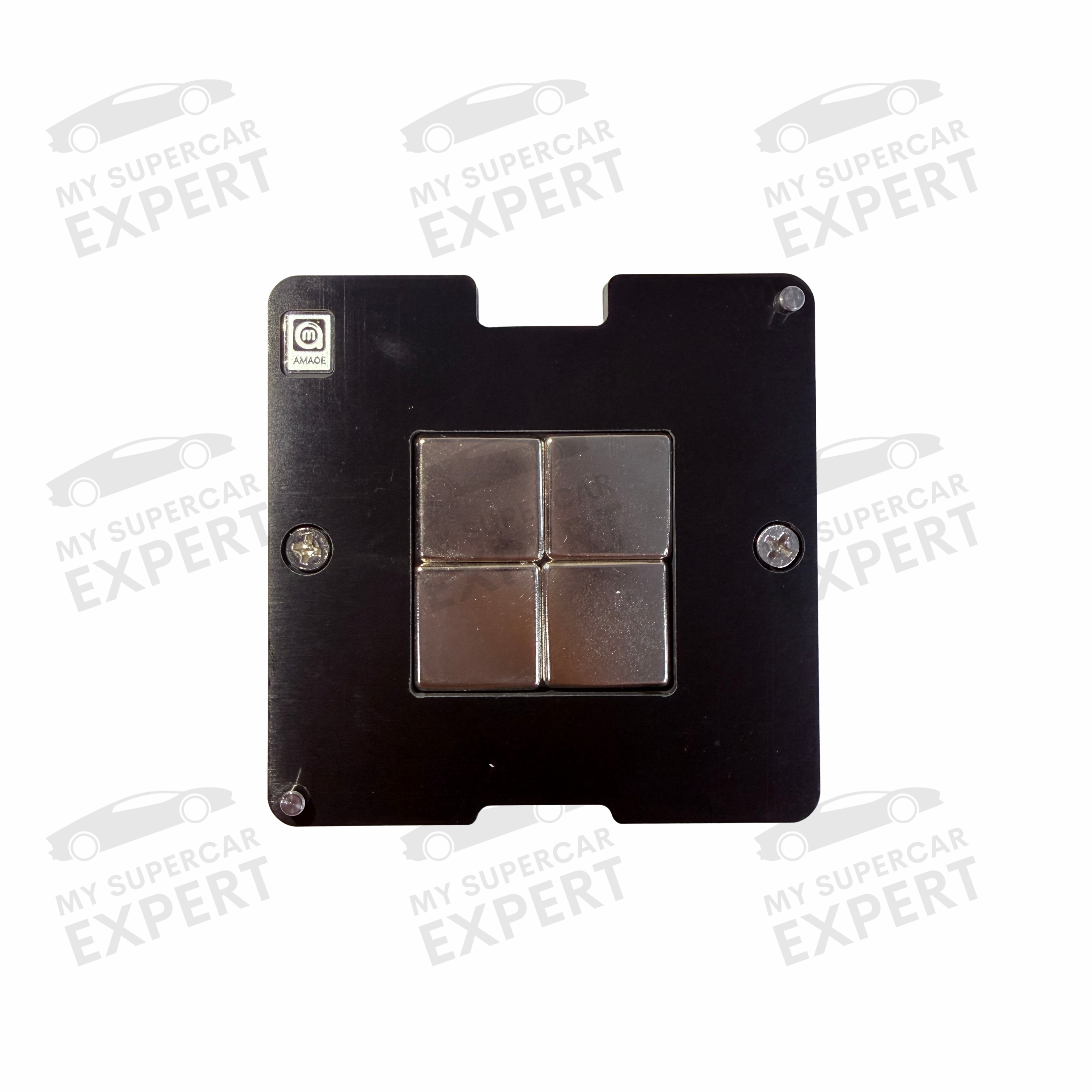

- Magnetic base

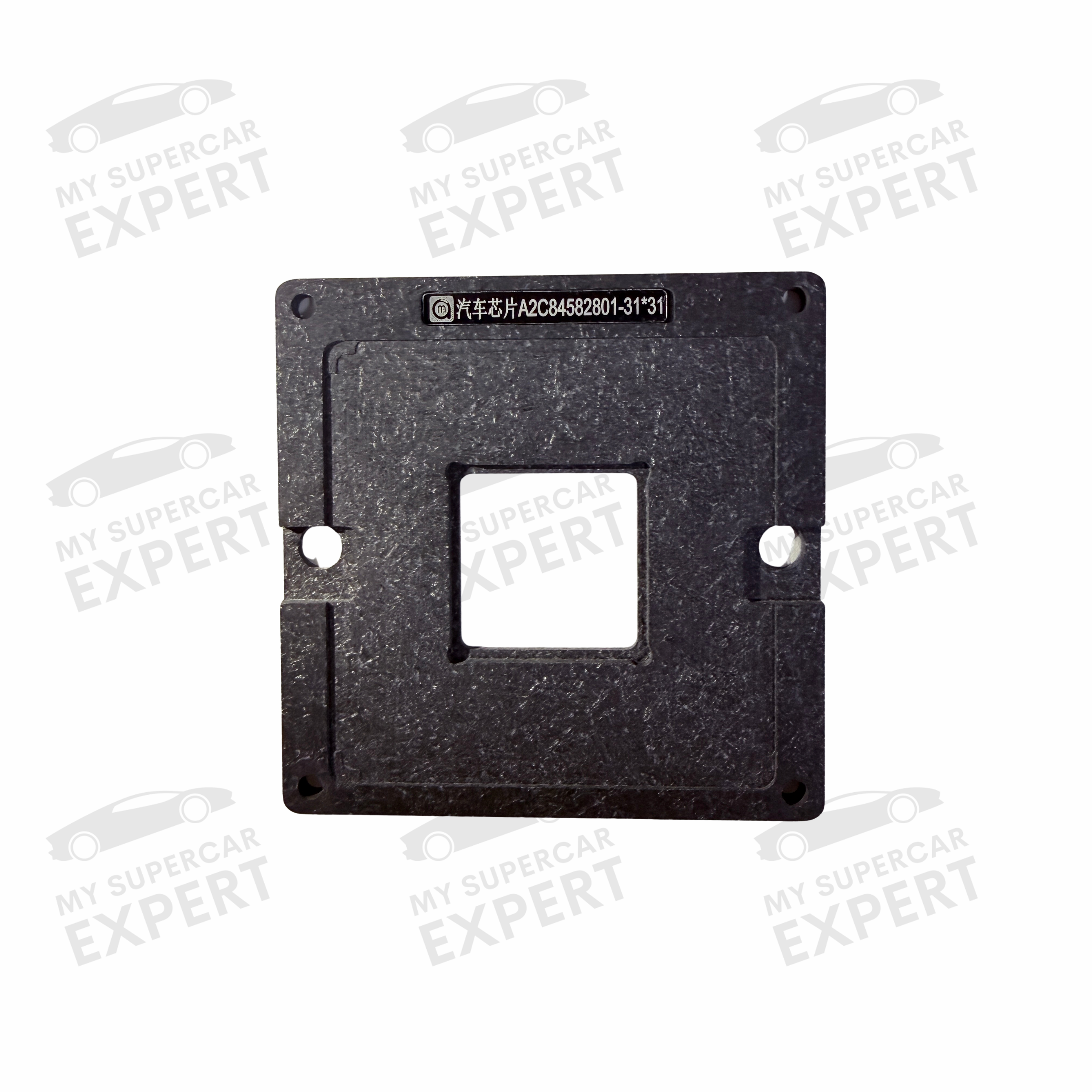

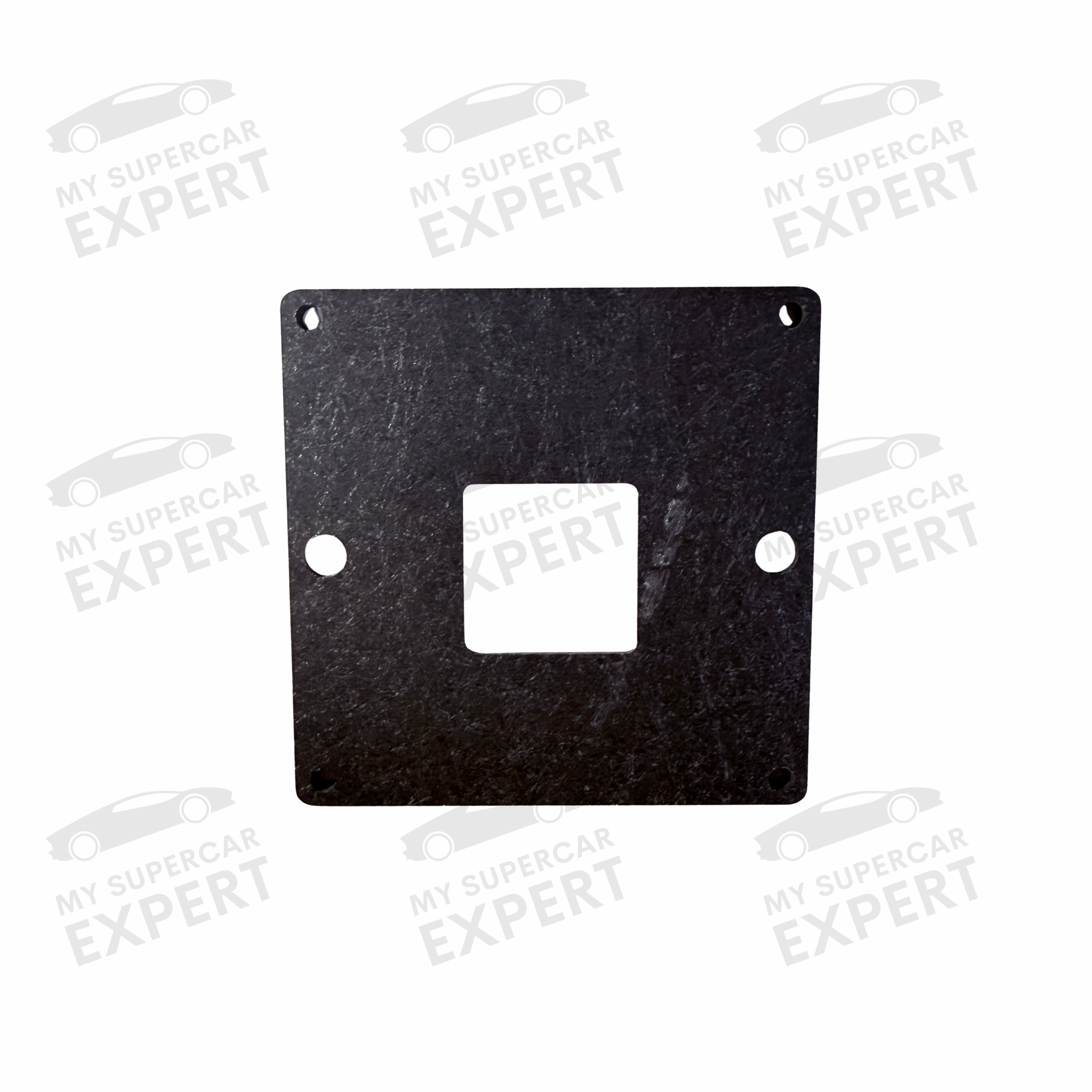

- Adjustment Plate

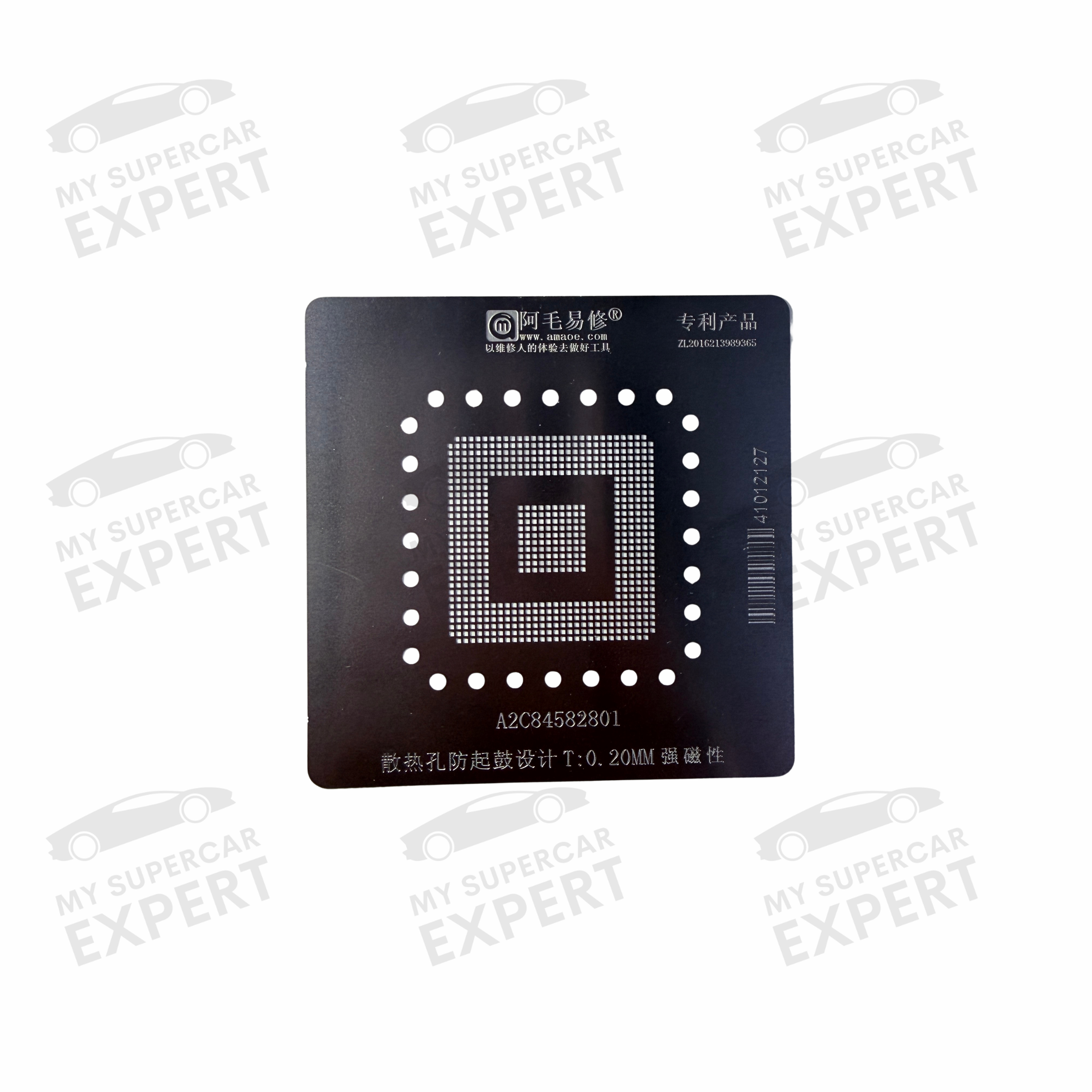

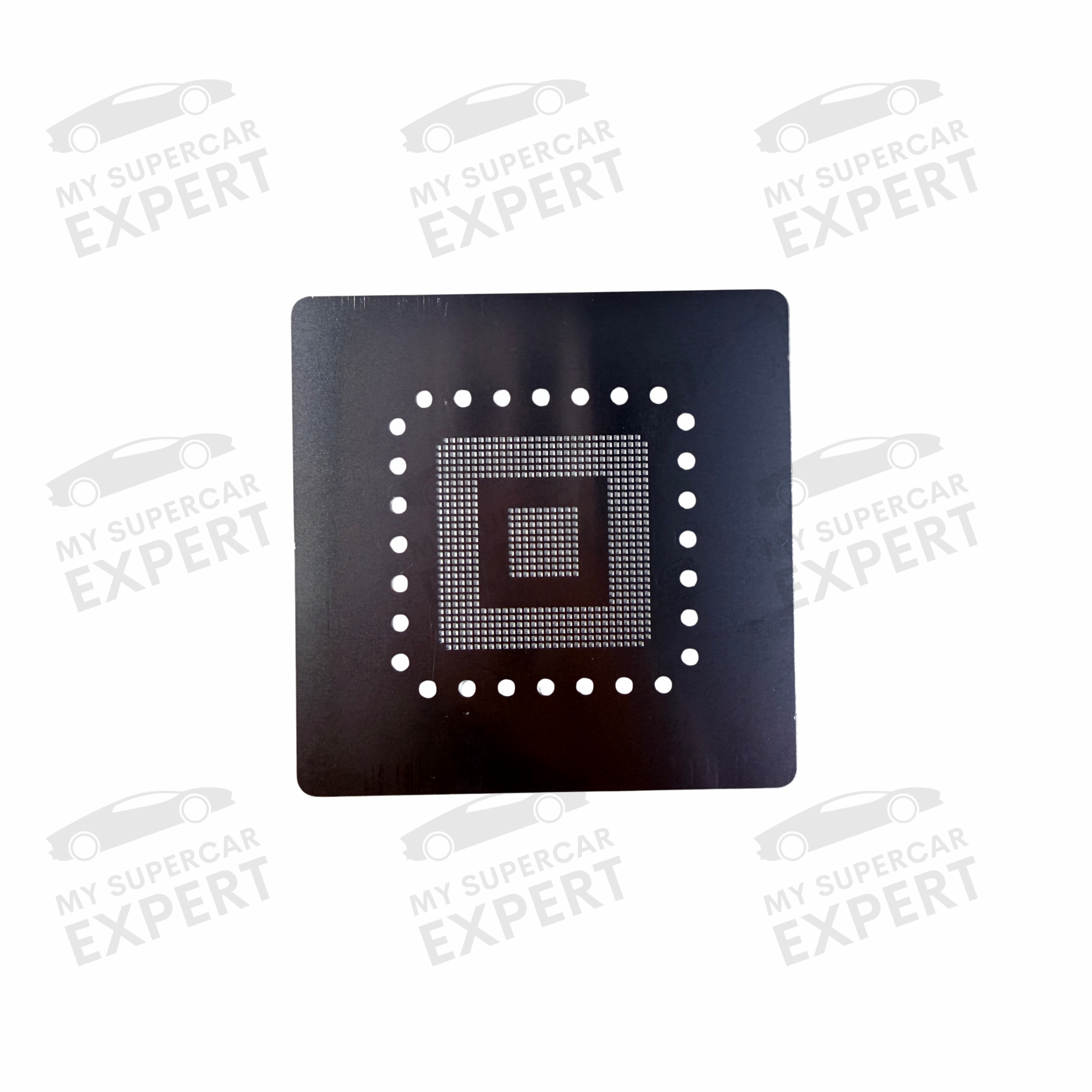

- Stencil

Instructions for use:
1. Remove all tin from the CPU
2. Set the CPU on the base and add the stencil on top
3. Use soldering paste and make sure it is evenly distributed all around the stencil holes, removing any extras.
4. Using a heating gun, warm up the soldering paste until it starts to melt into the CPU pads
5. Let it cool down for several minutes, then remove the stencil and check if there is any missing pad. If not, you can start soldering the CPU on the PCB!

These chips are commonly used on VAG LCD Instrument Clusters.

Forma del producto

Next day shipping

$100.00

Import fees may apply. Ask our team for more info!

    • Guaranteed secure & safe checkout.

      paypal
      Before you order...

    Check on the "Conditions" paragraph right above if any device is needed for coding or programming this product.

    On your purchase, you will receive detailed instructions on how to install your new part.

    Remember you can always contact us in advance for any info!

      100% Tested

    The product has been tested before shipping.

    ShippingShipping

    We ship by DHL, FEDEX and UPS worldwide: for these couriers, delivery times are usually as it follows:
    Europe -> 5-7 days
    ASEAN and East Asia -> 1-3 days
    GCC and Oceania -> 3-6 days
    Rest of Asia -> 4-7 days
    Rest of the world -> 7-10 days

    For USA market please check here.

    Descripción

    This BGA stencil kit can be used to reball Renesas V850 D70F3539A CPUs (BGA 564).

    The package includes:
    - Magnetic base
    - Adjustment Plate
    - Stencil

    Instructions for use:
    1. Remove all tin from the CPU
    2. Set the CPU on the base and add the stencil on top
    3. Use soldering paste and make sure it is evenly distributed all around the stencil holes, removing any extras.
    4. Using a heating gun, warm up the soldering paste until it starts to melt into the CPU pads
    5. Let it cool down for several minutes, then remove the stencil and check if there is any missing pad. If not, you can start soldering the CPU on the PCB!

    These chips are commonly used on VAG LCD Instrument Clusters.
